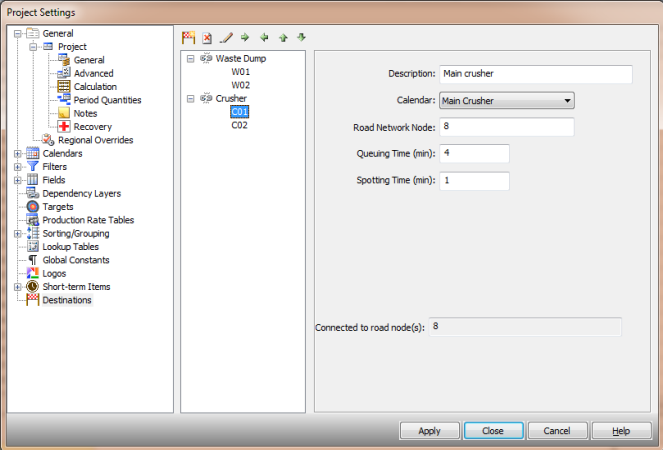

Destinations Settings

This form allows you to specify destinations, which are used for the haulage analysis.

Field	Description
	Click this button to add a new destination.
	Click this button to delete the selected destination.
	Click this button to edit the name of the destination.
	Use these buttons to move the selected destination around in the tree structure. This allows you to group destinations together.
	This icon is shown in the tree structure on the left-hand side to indicate that a destination is not connected to the underlying road network.
Description	Optional field. This is a short description for the selected destination, whose short name appears on the left-hand side in the list.
Calendar	Select a calendar for this destination. The calendar allows you to shut down a destination (e.g. a plant) if required.
Road Network Node	Fill in the name of the road node that this destination connects to.
Queuing time	Additional time to be added to a haulage cycle.
Spotting time	Additional time to be added to a haulage cycle.
Connected to road node(s)	Currently this will contain the same value as shown in the Road Network Node field.
Apply	Click to apply your changes
Close	Click to close the screen
Cancel	Click to lose the changes you made and close the screen.
Help	Click to display the help for this screen.
