Reconcilor System Requirements

Reconcilor is a HTML5 web application and requires a web browser on the client computer or tablet.

No other software is required on the client PC.

Important: System specifications and disk space requirements depend on anticipated data volumes and growth. Datamine recommends a scoping study to determine exact requirements. Testing or training environments must not be set up on the same server as the production environment, in order to reduce the load on the production server and isolate it from potential issues in other environments. For high-availability solutions additional hardware is required. This should be discussed with your Datamine representatives during the implementation study / budgeting phase.

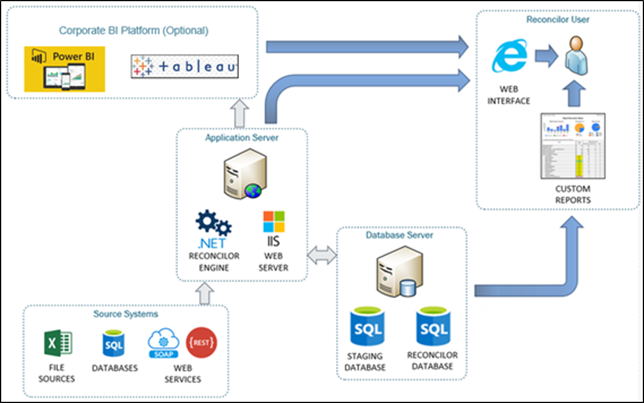

Reconcilor is designed with several components, outlined in the image and sections below.

Reconcilor product components

Application Server

Web Server – With a web-based user interface, the single Reconcilor instance is available to all domain users and avoids the need to install client software. User authentication is performed through Windows Active Directory.

Reconcilor Engine – The Reconcilor Engine is a Windows service that implements much of the Reconcilor core logic. It is responsible for the following processes:

  • Importing data from source systems
  • Data validation and health checks
  • Calculation of stockpile balances, material flows and comparison values
  • Updates to the Reconcilor reporting cubes.
Implementation Virtual Server or Physical Machine

CPU

Discrete Cores: 4

Architecture: 64-bit

Core Speed: 2.5 GHz or faster

Operating System

Windows Server 2016+

Vendor: Microsoft

Edition: Standard Edition, 64-bit

Licensing: 5 CAL

Memory

16 GB

Storage

150 GB

Network

Gigabit

Web Server

Internet Information Server 10+

Vendor: Microsoft

Licensing: Included with Windows Server Standard Edition

Other

 Microsoft Internet Information Services (IIS)

Database Server

Reconcilor Database – Reconcilor stores all data within a standard Microsoft SQL Server database.

Staging Data (within Reconcilor database) – In some cases, it may be necessary to perform additional data preparation steps before data is suitable for import into Reconcilor. These steps may include:

  • Validating and combining data from two or more sources.
  • Allowing users to manually enter data that is not available through other systems.

The staging data can also be used as means of supplementing the Reconcilor database with any additional data required to meet site specific reporting requirements.

Implementation Virtual Server or Physical Machine

CPU

Discrete Cores: 8

Architecture: 64-bit

Core Speed: 2.5 GHz or faster

Operating System

Windows Server 2012+

Vendor: Microsoft

Edition: Standard Edition, 64-bit

Licensing: 5 CAL

Memory

32 GB

Storage

Capacity: 400 GB

Capacity calculated from:

  • 50 GB Operating System
  • SQL Server data storage of 50 GB
  • SQL Server log stored of 50 GB
  • TempDB storage of 50 GB
  • Working area of 200 GB for support and temporary database backups
  • Long-term backups are not included in this calculation.

RDBMS

Gigabit

Database Server

SQL Server 2016+ (minimum requirement)

SQL Server 2019 (recommended)

Vendor: Microsoft

Edition: Standard Edition, 64-bit

Licensing: Per Server (included with SQL Server)

Authentication: Mixed Mode

Reporting Server

SQL Server 2016+ (minimum requirement)

SQL Server 2019 (recommended)

Vendor: Microsoft

Edition: Standard Edition, 64-bit

Licensing: Per Server (included with Database Server)

Source Systems

File sources – Reconcilor supports direct import of data from correctly structured CSV or Excel files.

Databases – Querying of data from any OLEDB compliant database is possible.

Web Services – With additional configuration, Reconcilor can capture data from custom web services and other interfaces (APIs).
