Import Definitions

The Import Definitions section contains the list of imports that have been configured for your instance of Reconcilor.

You will typically have no need to modify this screen other than to set up or modify an import schedule.

The Import Definitions Screen allows you to view or update the definition parameters for following types of data imports:

  • Block Import
  • Control Point Transaction Import
  • Haulage Import
  • Mine Plan Import
  • Model Cell Import
  • Model Survey Import
  • Stockpile Import

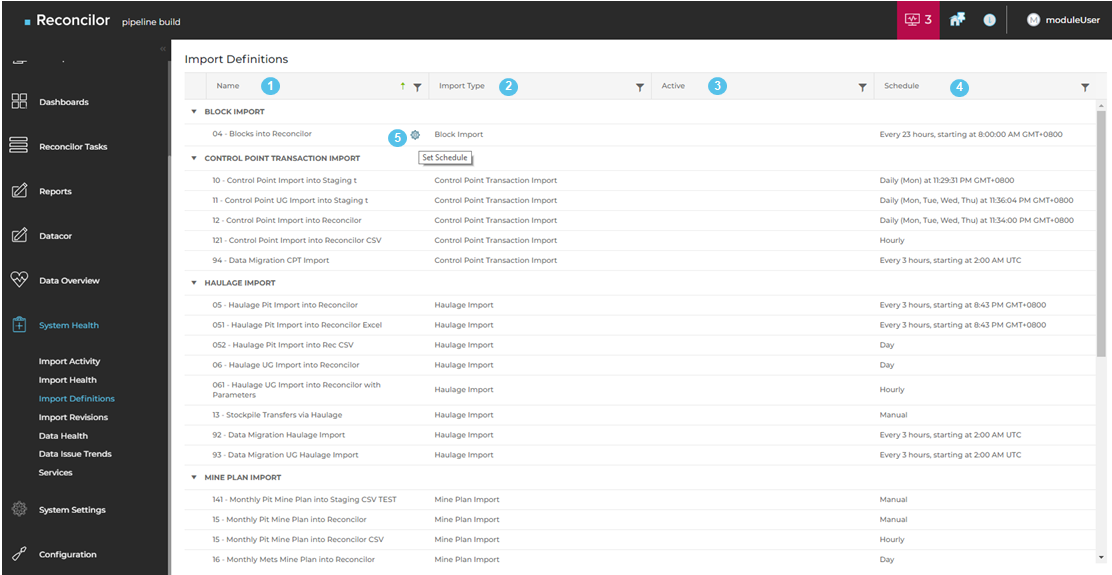

The Import Definitions Screen contains the following elements:

  1. Name – Import definition descriptive name.
  2. Import Type – Type of import the definition belongs to. The available list is shown above the image.
  3. Active – Specifies whether the definition is currently being used.
  4. Schedule – Specifies days, times and how often imports will occur.
  5. Set Schedule – Hyperlink that takes the you to a screen that allows you to modify the set schedule or change to a manual import.
