fillet-string-points-berm

See this command in the command table.

To access this command:

  • Using the command line, enter "fillet-string-points-berm"

  • Use the quick key combination "spbf".

  • Display the Find Command screen, locate fillet-string-points-berm and click Run.

Command Overview

Specify the maximum  curvature radius permitted between line segments on a selected berm string. Points are added to the line.

This command will fillet all coincident angles according to the values specified. If you wish to fillet a single point (or selected points) on a line, use the fillet-single-string-point command instead.

Command steps:

  1. Run the command.

  2. Specify a maximum radial curvature (using the Fillet String Points screen).

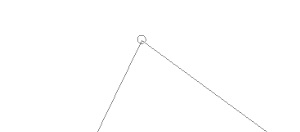

  3. Select the line you wish to amend, for example:

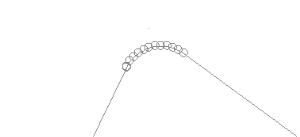

  4. The new line will then be modified (filleted) to create the necessary points in order to maintain the specified radial curvature, for example, the above line image, filleted to a radius of 30 shows:
