Renaming Group Descriptions

You can rename the default description by double-clicking and over-typing. You can also change the color used to display the lithologies within each group by double-clicking the color chip and choosing a suitable color.

Showing and Hiding Data

As with ungrouped lithologies, you can show or hide lithology groups using the corresponding check box on the left of the group description. Formatting applied to a group will affect all lithologies within it.

The 3D window is automatically updated providing the Auto Apply check box is enabled. If you also want to automatically zoom to the extents of displayed data, select Auto Look.Add lithologies from the right-hand list into the selected and highlighted group by selecting the required lithology on the left and the required group name (or any lithology within it) on the right, then selecting >. Any unassigned lithologies can be added to any defined group.

Note: A group does not have to be enabled in order to receive a new lithology value, and you can select multiple lithologies in the left-hand list, using a combination of <CTRL> and <SHIFT> keys before adding them to a group.

Applying grouping to the Drillhole Table will only assign group values to lithologies listed on the right of the panel. If, for example, you define a group name but leave it empty, it will not reappear if you close/reopen the task and reselect the new Group Field.

In other words, when a Group Field is selected, group names and values will only appear in the Groups table if they have been assigned to one or more records, for example, the following image shows lithologies grouped by uncertainty (a measure of the inverse of confidence) resulting in only two groups displayed in the 3D window:

Numeric and Alphanumeric Data Columns

The behaviour of the Group Lithology panel is slightly different depending on whether you are working with numeric or alphanumeric Lithology Fields.

Numeric Lithology Fields

If your Lithology Field is a numeric data type, your Group Field will also be numeric. This means that all descriptions you use to describe groups must also be numeric, and cannot be the same as any of the ungrouped lithological items or other groups.

For example, an NLITH attribute contains multiple lithological values as numbers (0-4) and is selected for the Lithology Field.

A Group Field with an alphanumeric description "CODED1" is created (this is the new attribute name that will be applied to the object), but each group that is created within it must be numeric, and in this case, be a number greater than 4. Creating a New group within the Group Field will automatically apply the value 5. You can add NLITH values to the '5' group. Creating a new group uses the default label '6' and so on.

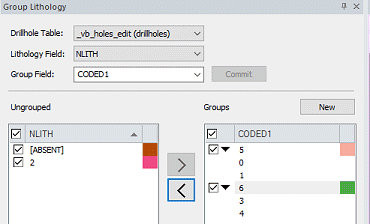

You can renumber the groups providing the value is not already used, either within the ungrouped items or the grouped items. In short, the number must be unique for the values displayed on screen, for example:

Absent data can be represented in Datamine files and objects with the "-" symbol. If these values are found in your selected Lithology Field, they are represented in the Assign Lithology panel as [ABSENT]. It is not possible, therefore, to create a group with the description "-" as this character is reserved.

Alphanumeric Lithology Fields

Alphanumeric Lithology Fields are treated slightly differently to their numeric counterparts.

If you have selected an alphanumeric Lithology Field, an [ABSENT] data item will appear providing there is no data in the selected column for at least one record. The presence of an '-' in a record of an alphanumeric field of the selected drillholes object is not regarded as absent, and is instead considered the same as any other alphanumeric value within the Lithology Field.

This means you can create a group called '-' if you wish and assign ungrouped items to it, even if there is already an ungrouped '-' data item. Providing the group name isn't already used, you can use any description you like.

Descriptions are not limited by file or field naming conventions; all items within the group and ungrouped list are alphanumeric values in an object.

Multiple groups can be useful if you wish to provide two or more grouping mechanisms within the same file, e.g. one for sample confidence grouping and another for lithology parent domain grouping.

Grouping Lithologies

To group lithologies in loaded drillhole data objects:

1. Load drillhole data containing lithology values to be grouped.

2. Display the Group Lithology screen.

3. Select a loaded Drillhole Table overlay from the drop-down list. Only desurveyed drillhole data object overlays display.

   Why overlays and not objects? This approach allows you to format a selected overlay for a drillholes object whilst retaining the formatting of other overlays. This can be useful, for example, if you wanted to compare an overlay of a drillhole table without grouping (e.g. coloured using the native lithological field) against a grouped overlay of the same object (e.g. colored using the Grouping Field).

4. Go to the bottom of the screen and choose the behaviour to perform when making changes:

   • Auto Look – If checked, any changes made within the form will be reflected automatically in the 3D display. This means the view will both scale and center so that displayed data is maximized within the display area.

     If unchecked, the 3D view direction and magnification will remain static regardless of changes made in the Group Lithology task.

   • Auto Apply – If checked, any changes made to the grouping of lithologies, including the creation of new grouping fields and group values/assignments, will be instantly reflected in the loaded drillhole data object (but not the physical file).

     If unchecked, changes made will not be applied to the data object until Apply Now is clicked.

5. Choose a Lithology Field. This is the attribute in the Drillhole Table (see above) that includes lithological values to be grouped. All non-system attributes are listed. When selected, all unique values appear in the Ungrouped table below.

6. The Group Field lists all numeric and alphanumeric non-system fields in the Drillhole Table.

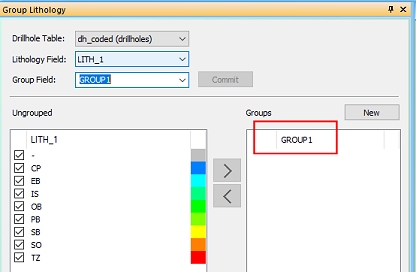

   Select an existing group field or enter a new description and press ENTER to generate a new grouping attribute.

   Note: If Auto Apply (see below) is checked, the drillhole object is automatically updated.

7. Click Commit to populate the rest of the screen. This option is enabled if you change your data context. That is, you change the Drillhole Table, Lithology Field or Group Field.

8. Review the Ungrouped table. This contains a list of all unassigned Lithology Field values. You can edit the colour of each value and hide or show values using the check boxes. Use the top-level check box to manage the display of all items in one go.

9. Select (left click) one or more Ungrouped lithology values to add to a group.

10. Click > to transfer selected values into the selected group on the right.

    The selected items transfer from the Ungrouped list to the Groups list.

    Note: Remove unwanted values from the Group using <.

11. If Auto Apply is unchecked, click Apply Now to update your loaded drillhole object. If Auto Apply was already checked, changes have been applied throughout the activity.

12. Optionally, to commit your changes to the physical data file represented by the Drillhole Table, click Save File.

    Warning: These changes can't be undone automatically.

13. Click Close.

14. Save your project and, if required, associated data files.
