Filtering DTS Schedule Data

Datamine Task Scheduler allows you to filter your activities to show data relating to a particular object grouping, for example, stopes or complex solids, for example. DTS InTouch will automatically detect the filtering settings made in the external DTS application and, where a schedule is linked, will immediately update the view in the DTS InTouch data window to show only data that is relevant to the currently selected DTS filter.

To visualize DTS schedule dependencies:

This procedure assumes that the following conditions are met:

Sequenced wireframe data has been loaded into your Studio application.
The DTS application is running.
A connection to the active schedule in DTS has been made.

Clicking Refresh on the DTS ribbon in your application will make a connection to the active schedule in DTS.
Your DTS project has been configured so that specific activity groups have been set up for filtering purposes (see your DTS online Help for more information).

The procedure for showing schedule-filtered information is quite short:

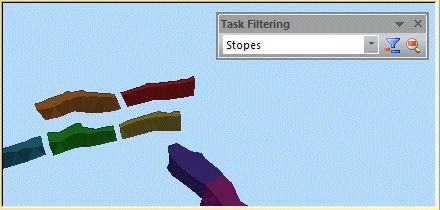

In DTS, use the Task Filtering toolbar to select an activity group, for example:
The view updates automatically to show only those activities belonging to the selected group.
