Evaluation Results

Evaluation results table (manual commands)

Evaluation Results

To access this dialog:

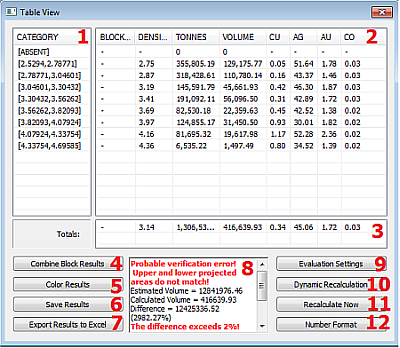

After setting initial parameters, the Evaluation Results window is displayed.

For more information on the setup parameters for each command, click one of the links above.

This panel is a streamlined version of the one shown using dynamic evaluation commands. Results for TONNES and VOLUME will always be displayed alongside the relevant BLOCKID. If additional fields were selected for evaluation, such as PHASE, SEQUENCE, VALUE, average AU grade etc. these will also be shown for each table record.

You can reorder columns shown in the table view by dragging and dropping the grey title cells.



For more information on the read-only table, see Dynamic Evaluation - Table View Dialog.

Field Details:

Category: this section lists all of the legend intervals defined in the current evaluation legend, as selected on the Evaluation Settings screen. Each item in this list will have a corresponding row in the Grade Columns Table (see below).

Grade Columns Table: all standard and user-defined grade columns (if selected on the Evaluation Settings screen) are listed here.

You can reorder the position of the columns by left-dragging the grey title area to a new position. Each record corresponds to a particular evaluation category, as seen in the Category list, and will show evaluation results for each of the selected grade fields.

Note that if the Combine Block Results toggle is active, and more than one string is selected, a single set of results will be displayed (with no BLOCKID) showing the compound results for all selected evaluation strings. If inactive, a separate group of results, each with a unique block identifier, will be listed. It is the view in this and the Category field that are stored in a results file, if you elect to save one (see below).

Totals: a summary total for all evaluation categories, for each grade column, is shown in this section of the dialog.

Combine Block Results: this toggle is effective when more than one evaluation string has been defined and is selected (i.e. it is not effective with the commands evaluate-1-string and evaluate-2-strings, for example).

If this toggle is active, the Grade Fields Table will display a single group of records denoting the combined evaluation for each legend category, otherwise, distinct groups of data (each representing a particular evaluation block) will be listed. In the latter situation, a block identifier will be listed in the corresponding results file to denote the source of the evaluation results.

For example, the image on the left, below shows uncombined results and the image on the right shows combined results. In this example, the evaluate-all-strings command was used, and 2 independent closed strings were visible:

Number Format: launches the Number Format dialog which allows you to specify the use of a thousands separator, and select the number of digits after the decimal point using the Digits after decimal: drop-down list. Values from [0] to [10] are available, as well as [Auto] which selects the default of 8 decimal places.

Save Results: click this button to save the contents of the current Grade Columns Table to a results table in memory, using the Save Evaluation Results dialog. This table will then be listed in the Loaded Data control bar and can be saved either with the project, or as a separate .dm file.

Export Results to Excel: launches Microsoft Excel and displays the Category and Grade Column tables.

Calculation Results: this section of the dialog reports the estimated vs. calculated values, and lists the discrepancy. For all discrepancies above 2%, a warning will be shown, listing possible reasons for the difference in values. For more information on interpreting the summary data, see Evaluation Reports Overview.
