Display Target Variable

To display this screen:

  1. Display the Scheduling Setup: Quality Constraints screen.

  2. Create and configure a Target Variable Definition.

  3. Click Display.

This screen displays your quality target variable in a two-row table. The contents of this table depend on whether your quality constraint has been defined as a Rate or a Ratio.

  • If your quality constraint is a rate, the NUM (Numerator) field displays the numerator set on the Quality Constraints screen followed by the target variable label, for example:

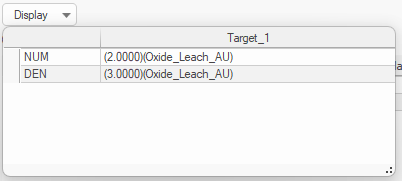

  • If your quality constraint is a ratio, the variable NUM and DEN (Denominator) are shown on separate lines, like this:

Note: You can't edit the values on this screen. Instead, use the Scheduling Setup: Quality Constraints screen.
