Process Full Description

reconcile-model-reserves-with-wireframe



Process Name

Menu Path

Link to Command Table

RECMODWF

Click here



RECMODWF is used to compare the tonnes and grades of groups of cells in a block model with the tonnes and grades of volumes defined by wireframes. An example of how it might be used is to compare the optimised pushbacks defined in a block model against designed pushbacks defined by wireframes.



Input Files

MODEL File

Input model file for reconciliation. It must contain a field identifying the cells to be reconciled with the wireframe volumes.

For example, if the model has been created by NPV Scheduler this field may be the optimally planned pushback identifier PSB_PIT or PIT_NO. The wireframe files could represent the planned pushbacks. The results would provide an indication of how close the designed pushbacks are to the optimised pushbacks.

WIRETR Triangle File

The wireframe triangle file of the designed mining shapes.

WIREPT Triangle Point File

The wireframe point file of the designed mining shapes.



Output Files

MODOUT

Optional output model file containing cell divisions defined by the input wireframes. This file will contain the IDFIELD2 field with values derived from the input wireframe. If the input file already contains the IDFIELD2 field its values are overwritten. The previous values are saved in a field called OldID2_

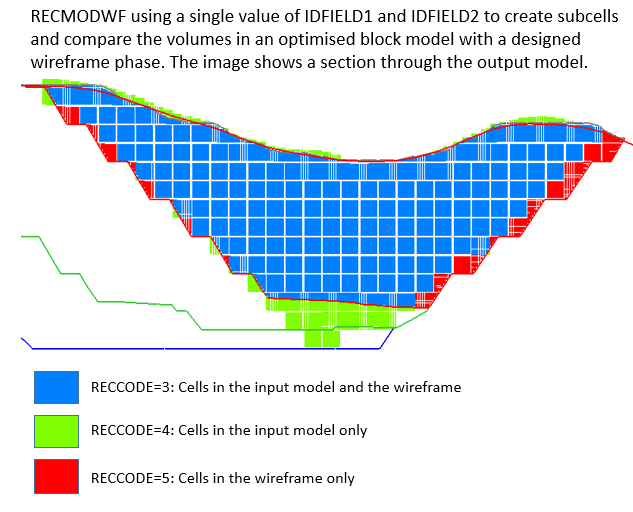

If a single value of IDFIELD1 and IDFIELD2 is defined using the @VALUE parameter then the output model will contain a RECCODE field with values of either 3, 4 or 5. These values are:

CODE=3, SOURCE=IDFIELD1 and IDFIELD2:

The total amount of material in the model with the same specified value of IDFIELD1 AND IDFIELD2

CODE=4, SOURCE=IDFIELD1 Only:

The total amount of material in the model with a specified value of IDFIELD1 and NOT with the specified value of IDFIELD2

CODE=5, SOURCE=IDFIELD2 Only:

The total amount of material in the model with a specified value of IDFIELD2 and NOT with the specified value of IDFIELD1

Results

Output results file containing tonnes and grades for categories of each unique value of IDFIELD2. The categories, with value of RECCODE from 1 to 5, are as follows:

CODE=1, SOURCE=IDFIELD1:

The total amount of material in the model with a specified value of IDFIELD1

CODE=2, SOURCE=IDFIELD2:

The total amount of material in the model with a specified value of IDFIELD2

CODE=3, SOURCE=IDFIELD1 and IDFIELD2:

The total amount of material in the model with the same specified value of IDFIELD1 AND IDFIELD2

CODE=4, SOURCE=IDFIELD1 Only:

The total amount of material in the model with a specified value of IDFIELD1 and NOT with the specified value of IDFIELD2

CODE=5, SOURCE=IDFIELD2 Only:

The total amount of material in the model with a specified value of IDFIELD2 and NOT with the specified value of IDFIELD1



Files, Fields and Parameters

Input Files

Name

Description

I/O Status

Required

Type

MODEL

Input model file for reconciliation. It must contain a field identifying the planned cells to be reconciled with the wireframe volumes. If the model has been created by NPV Scheduler this field may be the optimally planned pushback identifier PSB_PIT

Input

Yes

Block model

WIRETR

Input wireframe triangle file used to define the mined volume(s). This should contain a field identifying the design to be reconciled.

Input

Yes

Wireframe triangles

WIREPT

Input wireframe point file used to to define the mine volume(s).

Input

Yes

Wireframe points

Output Files

Name

I/O Status

Required

Type

Description

MODOUT

Output

No

Block Model

Output model file containing cell divisions defined by the input wireframes. This file will contain the MINED field with values derived from the input wireframe. If the input file already contains a MINED field its values are overwritten. The previous values are saved in a field called OldMined_

RESULTS

Output

Yes

Results

Output results file containing the reserve comparisons. This contains up to 5 records for every separate reconciled volume: Total Planned, Total Mined, Planned and Mined, Planned Only and Mined Only. Volumes are defined by the PLANNED and MINED fields and can be further broken down by the KEY1 field and BENCH parameter.

Fields

Name

Description

Source

Required

Type

Default

PLANNED

Field in MODEL file used to group the planned blocks. If comparing wireframe designs with pushback reserves in an NPV Scheduler model this field may be PSB_PIT.

MODEL

Yes

Any

Undefined

MINED

Field in the WIRETR file defining the volumes to be compared to the corresponding PLANNED block model cells.

WIRETR, MODEL

Yes

Any

Undefined

KEY1

Optional Key field in the MODEL file used to categorize results (e.g. a Rock type field).

MODEL

No

Any

Undefined

DENSITY

Density field in the MODEL file used to calculate tonnages.

MODEL

No

Any

DENSITY

GRADE1-10

Grade field in the model file

MODEL

No

Numeric

Undefined

Parameters

Name

Description

Required

Default

Range

Values

VALUE

Value of PLANNED and MINED fields to compare. If undefined or zero then all values of MINED field will be compared.

No

Undefined

Undefined

Undefined

MODLTYPE

Type of wireframe model to be filled; one of the following options, with default of (1) :-

1

Solid 3d, interior to be filled with cells

2

Solid 3d, exterior to be filled with cells

3

Surface, cells to be filled below (for XY), to south (for XZ), or to west (for YZ)

4

Surface, cells to be filled above (for XY), to north (for XZ), or to east (for YZ)

5

Fill between two surfaces with cells.

6

Two surfaces, cells to be filled above upper surface and below lower surface.



Yes

1

1, 6

1,2,3,4,5,6

FACTOR

Scaling factor to adjust the units of the Volume and Tonnage in the output files. Volume and Tonnage are divided by this factor.

No

1

Undefined

Undefined

SETABSNT

Set to 1 to allow TONGRAD to internally reset absent grade and Density values. If this is used, absent grade values are set to their default values. If the default value is absent grade values are set to zero. If Density values are absent the default DENSITY parameter value is used."

No

0

0, 1

0, 1

BENCH

Set to 1 to categorize the reserve comparisons by benches.

0

Do not categorize by benches

1

Categorize the results by benches (as defined by the model ZINC default value)



No

0

0, 1

0, 1

Example:

!RECMODWF &MODEL(upmodel),&WIRETR(pb123soltr),&WIREPT(pb123solpt),

&MODOUT(m33),&RESULTS(m3res3),*IDFIELD1(PSB_PIT),*IDFIELD2(PHASE),

*DENSITY(DENSITY),*GRADE1(AU),*GRADE2(CU),@MODLTYPE=1.0,

@FACTOR=1.0,@SETABSNT=0.0,@BENCH=0.0
