Show Surface Options An explanation of fields and properties

Show Surface Options

To access this dialog:

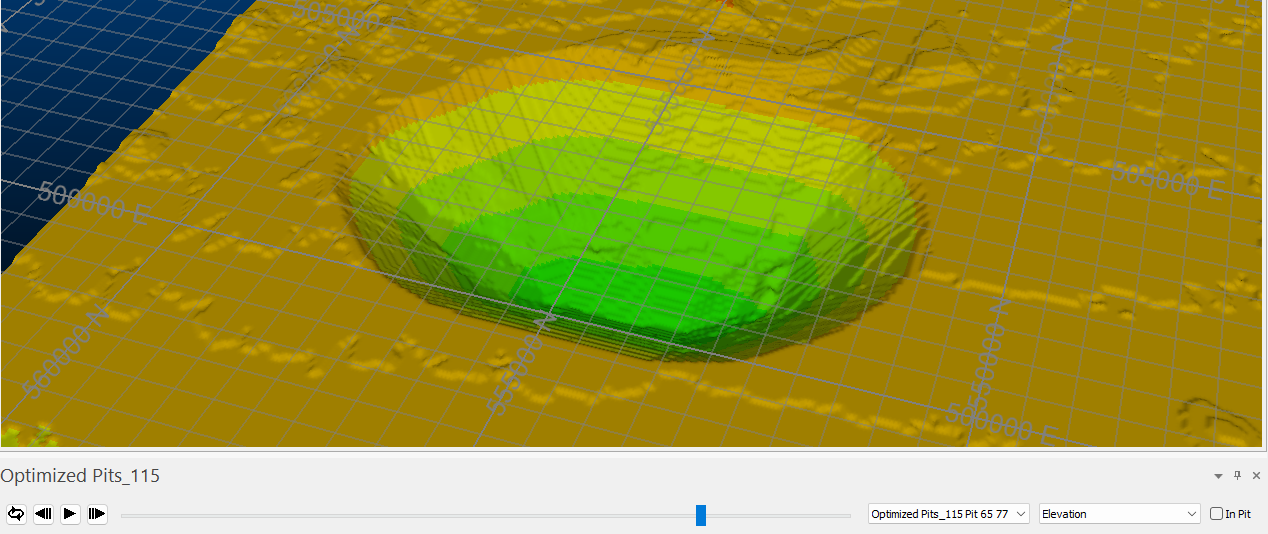

• Using the Visualize control bar, choose Surfaces | LG Phases.

The following options are available for the display of surfaces:

Field Details:

Show all surfaces: show all surfaces defined in this file.

Show selected surfaces: show the surfaces starting from the defined Start at code field, followed by subsequent surfaces interspersed by the Use interval field, finishing at the surface defined by the End at code field.
