create-multiple-sections ("cms")

See this command in the command table.

To access this command:

3D View ribbon >> Sections >> Multiple Sections.
Using the command line, enter "create-multiple-sections"
Use the quick keys 'cms'
Display the Find Command screen, locate create-multiple-sections and click Run.

Command Overview

Create multiple 3D window sections automatically either at intervals throughout loaded data or in relation to guiding string data (either along the string or around individual strings).

The creation of multiple sections uses similar controls to those required for independent sections, but in the multiple sections scenario, you can create a series of sections that can be used to quickly orient the view or clip data at milestone positions.

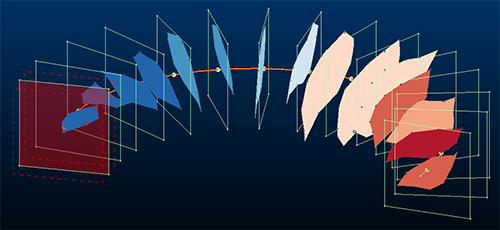

An example of multiple sections previewed around an arc (Along String option)

For example, you may want to create sections around individually located strings, where these strings could represent blast areas or underground workings, or creating sections that follow the directional trend of a string (always remaining perpendicular to it) to assess sections through an orebody. There are countless other use cases: Use this command to generate sections where a predictable pattern of section orientation, spacing or size is required.
