COPYMOD - move a block model



Process Name

Menu Path

Link to Command Table

COPYMOD

Model ribbon | Manipulate | Reposition

Click here



Introduction


This is a Superprocess and running it may have an effect on other Datamine files in the project. More...



Copy a normal or rotated model to a rotated or normal model with different origin and/or rotations.

How to use

The COPYMOD process creates a copy of a model using both translation and rotation.  This can be summarised as one of four types using the @MODTYPE parameters:

MODTYPE Input Model Output Model Comment
1 Normal Normal Translation only
2 Normal Rotated Apply translation and rotation
3 Rotated Normal Remove rotated
4 Rotated Rotated Apply translation and rotation



Rotated Models

A rotated model file includes information on two grids – the world (normal) grid and the local (rotated) grid. The normal origin, [XYZ]0, and rotated origin, [XYZ]MORIG, fields together with the rotation angles, ANGLE[123], and axes, ROTAXIS[123], provide the relationship between the two grids.

The XC, YC and ZC fields in a rotated model file hold the cell centre coordinates for the local (rotated) grid.  It is sometimes helpful to see the corresponding coordinates in the world (normal) grid.  When using MODTYPEs 2 and 4 the COPYMOD process allows the world coordinates to be added to the output model.  This is done by specifying names for the coordinate fields - *XWORLD, *YWORLD and *ZWORLD.

In order to add world coordinates to an existing model use MODTYPE 4 but do not select any of the nine parameters [XYZ]NEWORIG, AXIS[123] and ROTAXIS[123], but do specify field names for the three [XYZ]WORLD fields.  The output model will then be an exact copy of the input model but with the addition of the three world coordinate fields.




Files, Fields and Parameters

Input Files

Name

I/O Status

Required

Type

Description

MODELIN

Output

Yes

Block Model File

Input model prototype

This is a standard block model file containing the 13 compulsory fields. It may also contain the rotated model fields.



Output Files

Name

I/O Status

Required

Type

Description

MODELOUT

Output

Yes

Block Model File

Output model containing estimated MIK grades, etc.

Fields

Name

Description

Source

Required

Type

Default

XWORLD

X coordinate of sample data in SAMPLES file. If not specified, then XPT is assumed.

IN

No

Numeric

Undefined

YWORLD

Y coordinate of sample data in SAMPLES file. If not specified, then YPT is assumed.

IN

No

Numeric

Undefined

ZWORLD

Z coordinate of sample data in SAMPLES file. If not specified, then ZPT is assumed.

IN

No

Numeric

Undefined

Parameters

Name

Description

Required

Default

Range

Values

MODTYPE

Output Model Type

  1. Copy a normal model to a normal model in a different location
  2. Copy a normal model to a rotated model in a different location and rotation
  3. Copy a rotated model to a normal model in a different location
  4. Copy a rotated model to a rotated model in a different location and rotation

No

1

1,4

1,2,3,4

X/Y/ZNEWORIG

X/Y/Z coordinate of the origin of the output model in the world coordinate system.

No

Input model world X/Y/Z origin

Undefined

Undefined

ANGLE1/2/3

First/second/third rotation angle, clockwise in degrees, around axis ROTAXIS1/2/3. A value of zero or absent indicates no rotation. (0).

No

0

-360,360

Undefined

ROTAXIS1/2/3

Axis around which first/second/third rotation angle will occur. 0 for no rotation, 1 for X axis, 2 for Y axis, 3 for Z axis (3).

No

3 (ROTAXIS1)

1 (ROTAXIS2)

2 (ROTAXIS3)

0,3

0,1,2,3



Example

!START M1       Create examples for all four values of MODTYPE

# @MODTYPE=1  Copy normal model to normal model

!COPYMOD &MODELIN(Test_Model),   &MODELOUT(MODELOUT1),

@MODTYPE=1,

@XNEWORIG=1250,   @YNEWORIG=2050,   @ZNEWORIG=3000

# @MODTYPE=2  Copy normal model to rotated model

!COPYMOD &MODELIN(Test_Model),   &MODELOUT(TEMP1),

*XWORLD(WXC),   *YWORLD(WYC),   *ZWORLD(WZC),

@MODTYPE=2,

@XNEWORIG=1500,   @YNEWORIG=2100,   @ZNEWORIG=3000,

@ANGLE1=30,   @AXIS1=3



# SORT is only required so that the same default legends are used automatically in all 5 models

!SORT  &IN(TEMP1), &OUT(MODELOUT2), *KEY1(IJK), *KEY2(ABC)

# MODELOUT2 now becomes the input model for the next two runs of COPYMOD

# @MODTYPE=3  Copy rotated model to normal model

!COPYMOD &MODELIN(MODELOUT2),   &MODELOUT(MODELOUT3),

@MODTYPE=3,

@XNEWORIG=1250,   @YNEWORIG=1800,   @ZNEWORIG=3000



# @MODTYPE=4  Copy rotated model to rotated model

!COPYMOD &MODELIN(MODELOUT2),   &MODELOUT(MODELOUT4),

@MODTYPE=4,

@XNEWORIG=1600,   @YNEWORIG=1750,   @ZNEWORIG=3000,

@ANGLE1=-30,  @AXIS1=3

!END

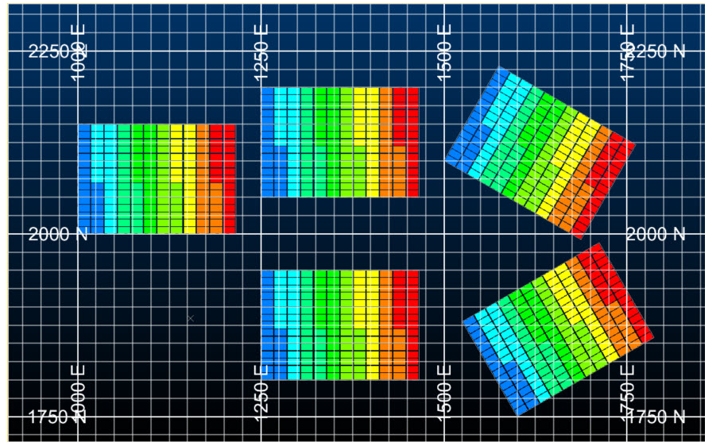

Model Location Model File
Top left Test_Model (input)
Top centre MODELOUT1
Top right MODELOUT2

Bottom centre

MODELOUT3
Bottom right MODELOUT4
