QUANTILE Process

To access this process:

  • Sample Analysis ribbon >> Statistics >> Geochemical Processes >> Calculate Quantiles.

  • Enter "QUANTILE" into the Command Line and press ENTER.
  • Display the Find Command screen, locate QUANTILE and click Run.

See this process in the Command Table.

Process Overview

Note: This is a superprocess and running it may have an effect on other Datamine files in the project.

Collectively quartiles, deciles, percentiles and other values obtained by equal subdivision of data are called quantiles. Quantiles give information about the shape of a distribution; in particular whether a distribution is skewed or not. Quantiles can be used for comparing two distributions.

The QUANTILE process carries out two types of analysis on a set of sample data:

  • Quantile Point Analysis: a table showing the grades corresponding to user defined percentile values.
  • Quantile Group Analysis: a set of tables showing the statistics of the grades lying between consecutive pairs of user defined percentile values

The first stage of the QUANTILE process is to apply the cutoff grade as specified by parameter CUTOFF.  Any sample below the cutoff grade is removed from the analysis.  Using the default cutoff grade of 0 in effect means that no cutoff is used.

The second stage is to apply a topcut grade.  If the parameter TOPCUT has been set to 1, then any sample which is greater than parameter TOPGRADE will be replaced by a sample of TOPGRADE.  If TOPCUT is set to 0, then the topcut will not be used.

The sample file is sorted in ascending order and divided into equal numbers of samples as defined by parameter QUANTIL1.  For example, if there are 120 samples in total and QUANTIL1=10, then each subdivision or bin will include 12 samples.   If the total number of samples does not divide equally by QUANTIL1, then some bins will contain one more sample than others.

If QUANTIL1=8 then the first bin will contain the lowest grade 12.5% of samples, bin 2 will contain the samples between 12.5% and 25%, and so on, with the top bin, bin 8, contain the highest 12.5% of samples.   The split using the QUANTIL1 parameter is called the primary subdivision.

The top bin can be further divided, as controlled by parameter QUANTIL2.  For example if QUANTIL2=5, then 5 additional bins from 87.5% - 90%, 90% - 92.5%, etc will be calculated.  This is the secondary subdivision.  If you do not want a secondary subdivision then QUANTIL2 should be set to zero.

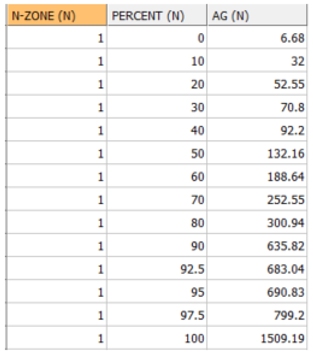

An example of a Quantile Point table, file QUANT_PT, is shown below. This has been created using QUANTIL1=10 and QUANTILE2=4.  A set of results is shown for each zone if the KEY field has been selected:

The Group Analysis tables show statistics between each pair of Percentiles; 0% - 10%, 10% - 20%, and so on.  The following statistics are calculated for each bin:

  • the number of samples

  • minimum grade

  • maximum grade

  • mean grade

  • metal content (the sum of the individual grade values)

  • % metal in bin (the metal content as a percentage of total metal)

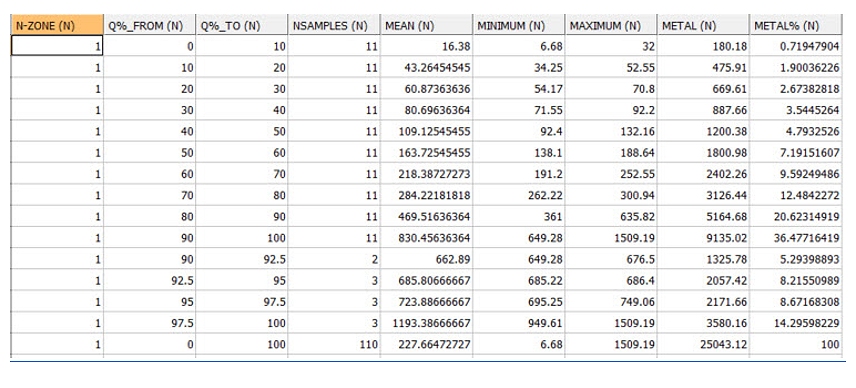

Two Group Analysis output files can be created.  The RESULTS file includes both the primary and secondary divisions and the PRIMARY file includes just the primary divisions.  The Results table can be saved to a system text file if file PRINT is specified.  The table will also be displayed in the Command Window.  An example of the RESULTS file is shown below:

If a WEIGHT field has been specified then the mean grade is a weighted mean and the metal content is the sum of weight*grade. Also the values in the NSAMPLES (Number of Samples) column are not necessarily equal because the weights, not the number of samples, are equally distributed between the quantiles. The WEIGHT field applies to both the Point and Group analysis tables.

If a KEY field has been specified, then the quantile analysis is done separately for each value of the KEY field.

Input Files

Name

Description

I/O Status

Required

Type

IN

Input sample file

Input

Yes

Undefined

Output Files

Name

I/O Status

Required

Type

Description

QUANT_PT

Output

No

Table File



Output file containing the *VALUE value for each Quantile Point defined by parameters QUANTIL1 and QUANTIL2. Although optional one of the two files QUANT_PT or RESULTS must be selected.

RESULTS

Output

Yes

Table File



Output file containing quantile group information for primary and secondary subdivisions. Although optional one of the two files QUANT_PT or RESULTS must be selected.

PRIMARY

Output

No

Table File

Output file containing quantile group information for the primary subdivision only.

PRINT

Output

No

Table File

System print file, containing quantile group information. This is a copy of the contents of the RESULTS file, but to a system file. The extension .pri will be added automatically to the file name.

Fields

Name

Description

Source

Required

Type

Default

VALUE

Name of the field containing the grade to be analysed.

IN

Yes

Numeric

Undefined

KEY

Key field for grouping the data. A separate quantile analysis is carried out for each unique value of the key field.

IN

No

Numeric

Undefined

WEIGHT

Field containing the weight used when calculating quantile means and accumulating the grade values. For example if the input data is a desurveyed data file then LENGTH could be used. If no field is specified then all samples have an equal weight.

IN

No

Numeric

Undefined

Parameters

Name

Description

Required

Default

Range

Values

QUANTIL1

The primary quantile. The number of primary subdivisions or bins for grouping the samples. For example setting QUANTIL1=10 will divide the samples into deciles; QUANTIL1=4 will give quartiles.

No

10

2,+

Undefined

QUANTIL2

The secondary quantile. The top bin of the primary subdivision can be further split into equal groupings. For example if QUANTIL1=10 and QUANTIL2=4, then the top 10% will be split into 4 equal groups of 2.5%. If set to 0 then the top bin is not resplit.

No

0

0,+

Undefined

CUTOFF

Cutoff grade. Only samples greater than or equal to the cutoff grade are selected for analysis.

No

0

Undefined

Undefined

TOPCUT

Flag to specify whether or not a topcut grade should be applied: 0 = No topcut applied. 1 = Topcut applied at grade defined in TOPGRADE

No

0

0,1

0,1

TOPGRADE

Grade to be applied as a topcut, if TOPCUT is set to 1. Any value greater than TOPGRADE will be reset to equal to TOPGRADE.

No

Undefined

Undefined

Undefined

NDP

Maximum number of decimal places for field VALUE in output file QUANT_PT.

No

2

0,6

0,1,2,3,4,5,6

Example

Copy
!QUANTILE &IN(Data_Test_1), &QUANT_PT(Q_Points),
 &RESULTS(Q_Results),&PRIMARY(Q_Primary),&PRINT(Q_Print),
 *VALUE(AG), *KEY(N_ZONE),*WEIGHT(LENGTH), @QUANTIL1=10,
 @QUANTIL2=4, @CUTOFF=0, @TOPCUT=0, @TOPGRADE=0,
 @NDP=2
