WEAVE - output keyfields from two input files



Process Name

Menu Path

Link to Command Table

WEAVE

Data ribbon | Data Tools | Relational | Weave

Click here



Introduction

Joins two sorted files on designated keyfields. Matching input fields and all records are output.

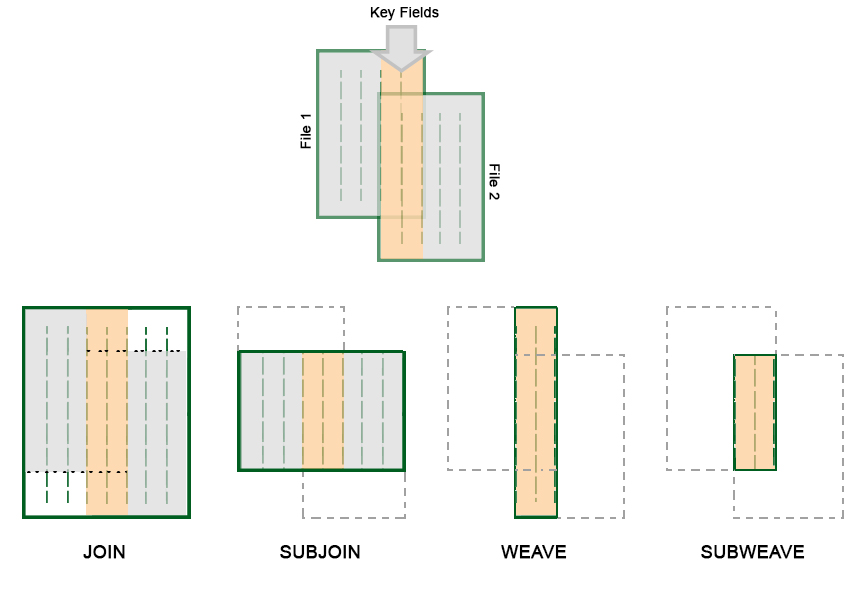

This process belongs to a group of four similar ones within the Datamine process collection; JOIN, SUBJOI, WEAVE and SUBWVE. Each provides a different outcome, as described by the following diagram:


Files, Fields and Parameters

Input Files

Name

Description

I/O Status

Required

Type

IN1

First file to be updated (sorted on required keyfields).

Input

Yes

Table

IN2

Second file (update file) (sorted on required keyfields).

Input

Yes

Table

Output Files

Name

I/O Status

Required

Type

Description

OUT

Output

Yes

Table

Output file.

Fields

Name

Description

Source

Required

Type

Default

KEY1

Keyfield 1 for matching on.

IN1, IN2

Yes

Any

Undefined

KEY2

Keyfield 2.

IN1, IN2

No

Any

Undefined

kEY3

Keyfield 3.

IN1, IN2

No

Any

Undefined

KEY4

Keyfield 4.

IN1, IN2

No

Any

Undefined

KEY5

Keyfield 5.

IN1, IN2

No

Any

Undefined

KEY6

Keyfield 6.

IN1, IN2

No

Any

Undefined

KEY7

Keyfield 7.

IN1, IN2

No

Any

Undefined

KEY8

Keyfield 8.

IN1, IN2

No

Any

Undefined

KEY9

Keyfield 9.

IN1, IN2

No

Any

Undefined

KEY10

Keyfield 10.

IN1, IN2

No

Any

Undefined



Parameters

Name

Description

Required

Default

Range

Values

KEYTOL

KEYTOL is the tolerance value used to test whether numeric key values are equal. It must be greater than or equal to zero. It replaces the previous heuristic comparison method.

If KEYTOL is set to a negative value then zero is used.

In a macro KEYTOL can be set to absent using -. "@KEYTOL=-" This will revert to legacy behaviour and use a heuristic comparison in relational commands and zero in sort.

No

0.00001

0,+

Undefined
