Command Help polygon-intersection



Command Name	Menu	Quick Key	Link to Command Table
polygon-intersection	Home ribbon | Edit | Combine | Intersect Polygons Edit ribbon | Edit | Combine | Intersect Polygons	plyi	Click here

Description

For selected polygons in the 3D window, this command creates a new polygon which contains the area common to all of them.

How to Use

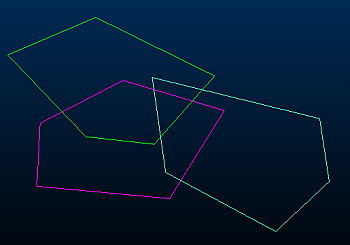

1. Create overlapping polygons using either the new-polygon or new-string command:



When creating each polygon, you can specify a different color as follows: In the Current Objects toolbar, select the current object or create a new one. More... In the Current Objects toolbar, select [COLOUR] from the Attribute drop-down list, and specify a color - More....

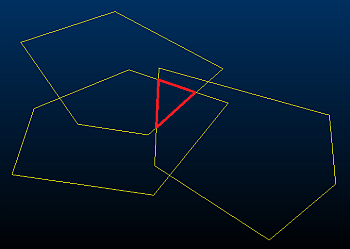

2. Select all overlapping polygons and run the polygon-intersectioncommand. A new polygon is created that contains the area common to all overlapping polygons, highlighted below, and is colored the same as the last polygon you created:



	Related Topics
	new-polygon polygon-union
