Extrude Strings

To access this screen:

Solids ribbon >> Create >> Link >> Extrude Strings.
Using the command line, enter "extrude-strings"
Use the quick key combination "exs".
Display the Find Command screen, locate extrude-strings and click Run.

Create wireframes from strings, extruded in a particular direction.

Before you can use this command, at least one string entity must be loaded. More than one string can be selected before an extrusion is performed; all are extruded in the same way. Both open and closed strings can be extruded.

String data must be selected before data is processed. Only selected string data is extruded.

To extrude strings to form wireframe data:

Choose your Output option. You can output data either within the Current object, an existing wireframe object (pick it from the list) or a new object (type a new name).
Specify the Extrusion Direction by manually setting the Azimuth and Dip, or use one of the Extrusion Presets:
- Up—project with an azimuth of 0 and a dip of -90.
- View Plane—project the string in a direction perpendicular to the current view direction.
- Down—project with an azimuth of 0 and a dip of 90.
- North—project directly northwards, that is, at an azimuth and dip of 0.
- West—project the string with a 270 azimuth and 0 dip.
- East—project the string with a 90 azimuth and 0 dip.
- South—project the string with a 180 azimuth and 0 dip
- 3D Section—select an existing 3D window section to determine the projection direction.

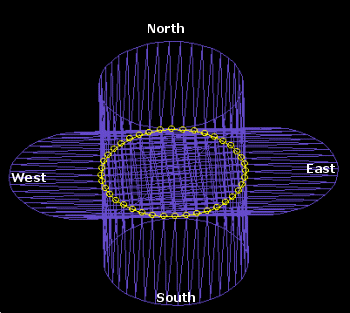

  The following images describe the preset directions more graphically. The left hand image shows a closed, circular string, created on the bias between plan and east-west directions. This string has been projected in North, South, East and West directions:
Note: choosing a preset automatically updates the Azimuth and Dip fields, which can subsequently be edited manually if required.
Define an Extrusion Distance by defining a Forwards and Backwards distance, or leaving the default zero value to only project on one side of string data.
Choose fine-tuning Options:
- End Link—optionally create a 'capped' wireframe. If checked, you will create an additional surface at each 'end' of the generated wireframe object, for example:

  If an open string is projected, it is still possible to cap the ends of the resulting wireframe, although the effect will be determined by the overall geometry of the base string - this command will join first and last vertices to create a cap wherever possible.

  Note: the default value for End Link is a project setting.
- Separate ends —decide if multiple projected strings are treated as entirely separate things or not. Separate entities are extruded in isolation, whereas you can also consider multiples strings a part of the same extrusion.

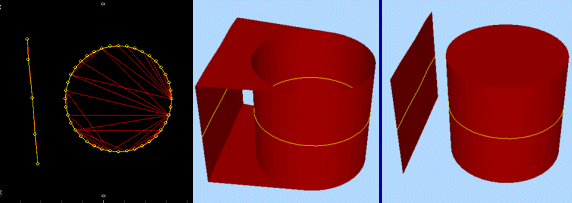

  This is best explained by example; the left image shows the original data used to generate an extrusion (in plan view). The central image shows an isometric view of the generated wireframe when ends are capped, but Separate Ends is unchecked. Compare this with the right-hand image in which the Separate Ends is checked:
- Wireframe Attributes from strings—if checked, the attributes of the original string are copied to the output wireframe object. If unchecked, system default attributes are used to create the resulting wireframe.
Click OK to generated extruded wireframe data from the selected strings.
