Digitizing in 3D

Digitizing (drawing) point and string data is one of the key activities used in creating geological models, designing open pit or underground workings and scheduling.

3D windows offer advantages and the ability to separately control section and view parameters during these processes, a useful feature when dealing with complex 3D modelling and design scenarios. These display types evolved from legacy display ports which were predominantly 2D in nature.

See 3D Design for more information on the history of 3D windows in Studio products.

Listed below are a number of short procedures, introducing point or string data creation in a 3D window. Although each procedure lists a single method, other options, alternative methods and variations are also possible, in order to achieve the desired result.

Digitizing new data and editing existing objects in the 3D window can both involve generating new data. Data is defined by picking 3D locations.

Note: when digitizing the first points for new data such as points or strings, in a new project which does not yet have other data displayed and in memory, the current section may seem to disappear and then reappear as the second and subsequent point(s) are digitized. This behaviour is expected as the current section, by default, automatically fits to the extents of the data hull. With a single digitized point on the screen, this hull then initially has zero width; as the additional points are digitized, the data hull no longer has zero width and the section should appear as normal.

Snapping to 3D Data

Data points are added either by left-clicking with the mouse (or tapping with the stylus) to register a data location on the current 3D section. The 3D section is, essentially, the canvas upon which data is created unless you choose to snap data points to other existing data, typically achieved with the right click of the mouse, or the corresponding behaviour with a smart stylus.

Snapping is supported by all digitizing commands, and in some cases, snapping is automatically enforced.

Left-clicking, or 'free' digitizing, relies on the current 3D section being oriented in such a way that all clicks hit the section plane. Failure to digitize a point onto the active section (see below) results in the following status bar message:

"No hit with active section"

Placing points by right-clicking (snapping) does not require a section as a data point is added to be coincident to the nearest data (within reason, if there's no data anywhere nearby, right-clicking results in nothing).

Snapping allows you digitize onto a wireframe, a loaded image or any other data that has 3D context. The data that can be used as a target for snapping is determined by your current snap settings.

You can even restrict snapping to particular loaded 3D objects, and toggle a passive snapping mode that ignores the way vertices are digitizing (see auto-snap-switch ("asn")).

See Snapping to 3D Data.

"Sketch" Digitizing

Typically, a combination of free digitizing and snapping is used during design. However, you can also convert your cursor or stylus to operate in a "sketching" mode. In this mode, many points are digitized to the screen in rapid succession, allowing a line to be sketched without having to digitize individual string vertices.

This only applies to string digitizing, but can be useful when tracing, say, a geological feature from a loaded 3D image or textured wireframe surface, for example.

By default, sketching mode is disabled, but it can be toggled using the auto-node-switch command.

The Active 3D Section

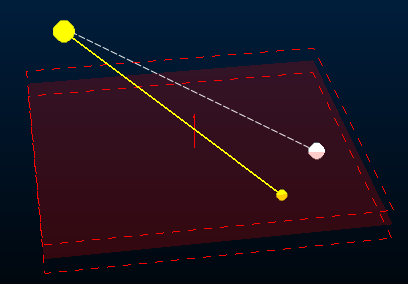

The easiest way of seeing the position, extents and orientation of the active 3D section is by displaying the section indicator grid.

Note: Only one 3D section can be active in a 3D window at any time. If there are linked 3D windows, the active section is consistent in all of them, however, independent 3D windows can have their own active section definition. See Independent 3D Windows.

The visual properties of a 3D section are determined by its section properties. These are configurable. A section can either be a single 3D plane, or can be a collection of 3D planes in the same object (known as a "section definition table"). See 3D Sections.

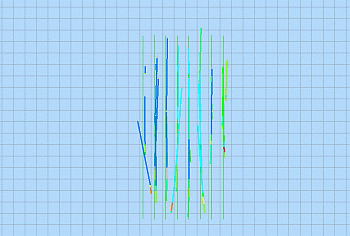

In the image of the drillhole and geological section strings data below, the current section is horizontal and the view direction is set to 'Plan'. In this case, any data which is digitized or edited, being placed with a left-click, will intersect and be placed on the plane of the current section.

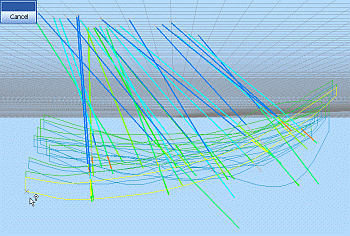

In the image of the drillhole and geological section strings data below, the current section is still horizontal but the view direction is has been changed to 'East'. Note that the current section does not fully fill the view.

Here, any attempts to digitize or edit data, placed with a left-click, where the placement click falls outside of the grid (as shown in the above image), will result in a warning tone and the warning message 'No hit with active section!' being displayed in the Status Bar at the bottom of the main window, shown below.

Note: Precise digitizing can be achieved by specifying command line coordinates.
