Screen Layout

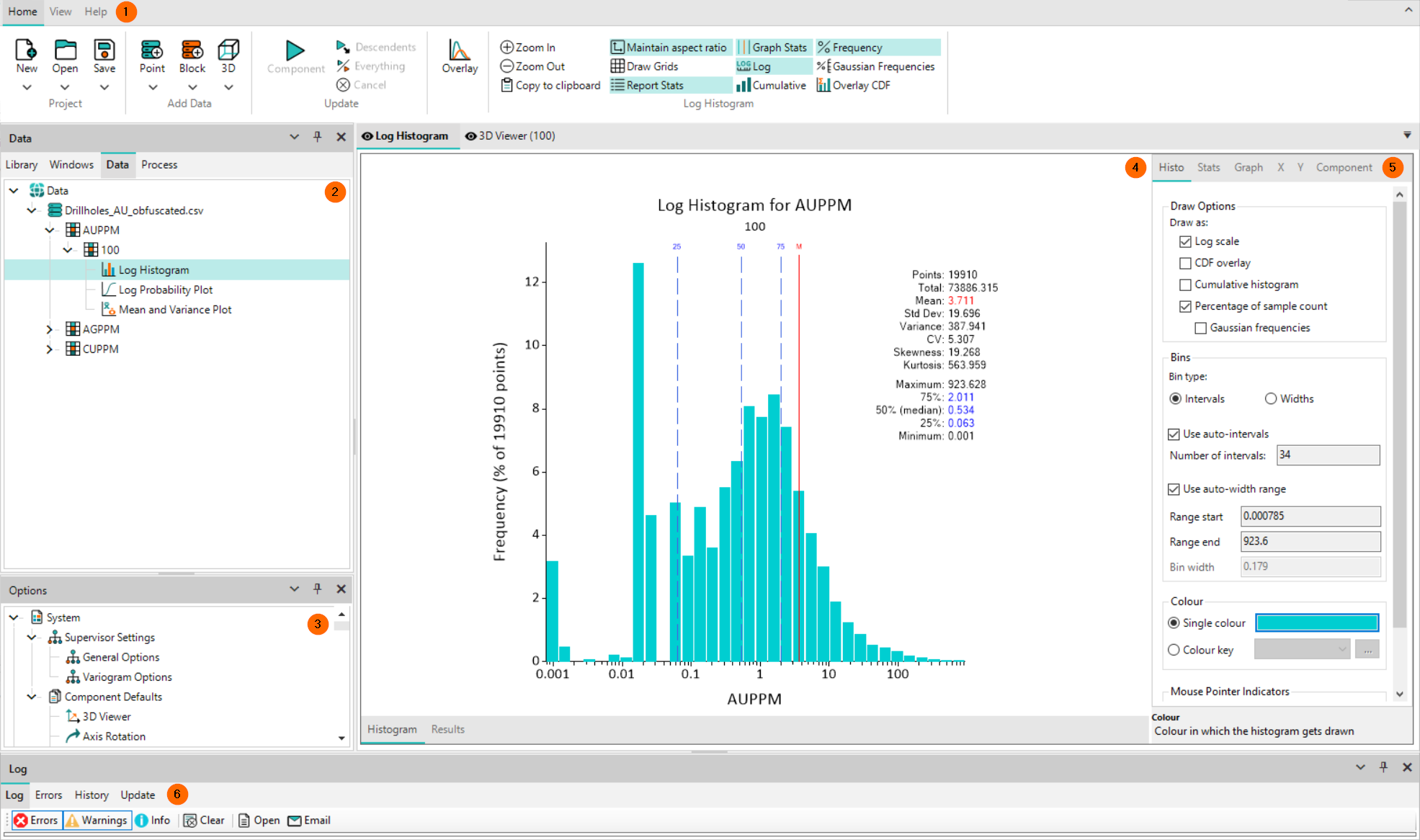

This section describes Supervisor's user interface. The image below shows the location of each part of Supervisor's layout.

1. Menus – Located at the top.
2. Project Tree – Located on the left. Displays components and plots in the current project.
3. Component Options – Located in the bottom left. Contains libraries, windows and system options.
4. Main Canvas – Located in the centre. Displays the selected plot, 3D Viewer tab and the Results tab.
5. Property Panel – Located on the right. Displays the property options for the selected plot or data type.
6. Status Window – Located at the bottom. Displays errors, warnings and other update information.
