SELWF Process

To access this process:

  • Structure ribbon >> Process >> Select in Wireframe.

See this process in the Command Table.

Process Overview

Select records lying inside/outside wireframe volumes or above/below wireframe surfaces or DTMs.

Records of a file which have X, Y and Z co-ordinates lying above/below wireframe surfaces or inside/outside a wireframe volume are copied to an output file. The wireframe model can contain multiple zones, but a point will only be selected once if it falls within more than one zone. The wireframe triangle file does not have to be sorted by the *ZONE field.

If the wireframe contains multiple zones, the order of selection is determined by the order of the zones in the wireframe triangle file.  For example if 2 overlapping wireframe solids, zones A and B, exist in the wireframe file, and B occurs first in the wireframe triangle file, then points within B will be selected and flagged with the zone code of B.  Points outside B, but within A, will then be selected and flagged with the zone code of A.  In other words, if there is an overlap the first zone takes precedence.

Points that are regarded as coincident with a surface if they fall within the defined TOLERANC value. You can choose to either include or exclude these points from the selection. For example, if you are selecting points above a DTM using the XY PLANE option, and points are found to be coincident with the surface, selecting the points above the DTM (because SELECT=1), you can include the DTM-coincident points by ensuring EXCLUDE=0, or exclude them by settings EXCLUDE=1.

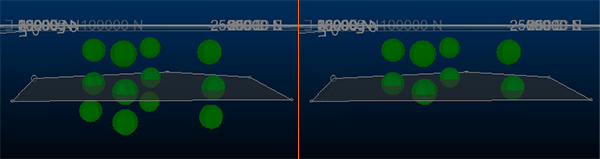

For example, in the image below on the left, a simple DTM (transparent) has 4 coincident points, 4 above and 4 below the surface. If SELECT=1, TOLERANC=0.001 and EXCLUDE = 0, the points on the right are in the OUT file when SELWF is run:

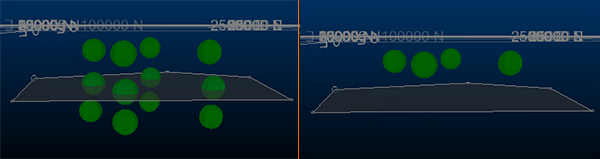

In the same scenario, where EXCLUDE=1:

By default, points falling on the wireframe surface are included in any selection.

The PLANE parameter can be used with vertically oriented wireframe surfaces or DTMs to allow selection of points to the east, west, north, or south, instead of above or below. This parameter can also be used with steeply dipping tabular solid wireframes to speed up the point selection. In-place operations are not permitted. If no PLANE is set (the default setting), an XY plane will be used.

Using @SELECT

1.    SELECT = 1, 2, 5, 6, 7, 8
   Points which lie above or below the surface, but which are outside the surface boundary, will not be selected.




2.    SELECT = 4
   An outside point will be outside all wireframe volumes/solids. Attribute fields will not be copied. The zone field will be set to absent value.

A wireframe surface or DTM is one which contains no vertical or overhanging portions when viewed from a position perpendicular to the plane specified by PLANE. A warning will be given if a DTM surface contains a vertical face, but overhangs will NOT be detected. Holes (missing triangles) in a solid wireframe will generate a warning, but so will duplicate triangles. Double duplicates will cancel out and thus not be detected. The parameter TOLERANC is applied in a direction perpendicular to PLANE , NOT perpendicular to the surface of the wireframe. If attribute fields are specified, their values are taken from the first record in the wireframe triangle file for each zone, or from the first record in the file if no zone field is specified.

Input Files

Name

I/O Status

Required

Type

Description

IN

Input

Yes

Undefined

Input point file for selection. Must have explicit numeric fields X , Y and Z.

WIRETR

Input

Yes

Wireframe Triangle

Input wireframe triangle file

WIREPT

Input

Yes

Wireframe Points

Input wireframe point file

Output Files

Name

I/O Status

Required

Type

Description

OUT

Output

Yes

Undefined

Output file of selected records. File may contain additional fields, including the ZONE field.

Fields

Name

Description

Source

Required

Type

Default

X

Field in IN file defining the X co-ordinate.

IN

Yes

Numeric

Undefined

Y

Field in IN file defining the Y co-ordinate.

IN

Yes

Numeric

Undefined

Z

Field in IN file defining the Z co-ordinate.

IN

Yes

Numeric

Undefined

ZONE

Field in WIRETR file used to identify individual surfaces and solid models. The field can be numeric or alphanumeric up to 20 characters (5 words). WIRETR does NOT have to be sorted by ZONE.

WIRETR

No

Any

Undefined

ATTRIB1

Field from the WIRETR file to be placed into the output file for all records which are selected. Up to 4 words may be entered, which may be 4 numeric fields or a mixture of alphanumeric and numeric fields totalling 4 words.

WIRETR

No

Any

Undefined

ATTRIB2

Second field from the WIRETR file to be placed into the output file for all records selected.

WIRETR

No

Any

Undefined

ATTRIB3

Third field from the WIRETR file to be placed into the output file for all records selected.

WIRETR

No

Any

Undefined

ATTRIB4

Fourth field from the WIRETR file to be placed into the output file for all records selected.

WIRETR

No

Any

Undefined

Parameters

Name Description Required Default Range Values
SELECT

Option

Description

1

select points above a DTM surface

2

select points below a DTM surface

3

select points inside a solid

4

select points outside a solid

5

select points above a wireframe surface

6

select points below a wireframe surface

7

select points between two wireframe surfaces

8

select points outside two wireframe surfaces.

Yes

3

1,8

1,2,3,4,5,6,7,8

PLANE

Optional alpha parameter defining approximate orientation 'XY', 'XZ', or 'YZ' of DTM surface. If not specified, XY will be used.a

No

XY

Undefined

'XY', 'XZ', 'YZ'

EXCLUDE

Option

Description

1

exclude points that fall on, or within TOLERANC , of the wireframe surface (0).

No

0

0,1

0,1

TOLERANC

Tolerance used to determine whether a data point is 'on' a surface or not.

No

0

Undefined

Undefined

CHECKROT

Set to 1 to automatically process rotated models

 =(0) : Do NOT automatically check for a rotated model prototype. Use this setting if the input model is rotated and the model cell centres are already transformed into the wireframe space using CDTRAN.

 =1 : Automatically check for a rotated model prototype and internally transform the model cell centre points.

No

1

0,1

0,1

ALLPTS

Set to 1 to copy across all input points

=0 : Copy only the coded points to the output file..

=1 : Copy all the points to the output file. The coded points will be flagged with the ZONE field values and the attributes.

No

0

0,1

0,1

SETABSNT

Set the specified ZONE and attribute fields in the input points file to absent before processing.

=0 : Do not set the ZONE and attribute values to absent before processing (Default).

=1 : Set the ZONE and attribute values to absent before processing.

No 0 0,1 0,1
FIXNORM

Attempt to resolve any problems in the input wireframe before processing.

=0 : Do not attempt to resolve any problems in the input wireframe (Default).

=1 : Attempt to resolve any problems in the input wireframe.

No 0 0,1 0,1

Example

!SELWF

&IN(SAMPNTS),&WIRETR(ORETR),&WIREPT(OREPT), &OUT(SAMPSEL),
*X(XP),*Y(YP),*Z(ZP),*ZONE(ZONEID),*ATTRIB1(ORENO),
@SELECT=3,EXCLUDE=0,TOLERANC=0.001

NUMBER OF TRIANGLES = 152
NUMBER OF POINTS TO SELECT = 159
>>>100 RECORDS READ : TIME 14:43:41 <<<
>>>112 RECORDS IN FILE POUT <<<
