switch-wireframe-edge ("ste")
See this command in the command table.
To access this command:
-
Structure ribbon >> Edit >> Switch.
- Display the Find Command screen, select switch-wireframe-edge and click Run.
-
Using the command line, enter "switch-wireframe-edge"
-
Use the quick key combination "ste".
Command Overview

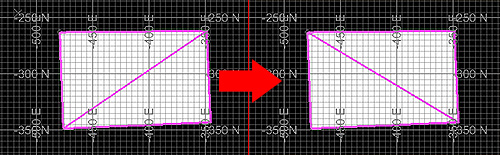

Swap the linking off wireframe vertices from one arrangement to another within a quadrilateral. For example:
The command will become active and any wireframe edge can be rearranged during a command session.
Command Steps:
-
Display wireframe data with internal edges to be rearranged.
Tip: Show the loaded wireframe with highlighted edges before you run the switch-wireframe-edge command.
-
Select an internal wireframe edge (exterior edges can't be adjusted).
The arrangement of the internal edge swaps between possible arrangements, within the bounding quadrilateral.
