DAELLIPS Process
To access this process:
- View the Find Command screen, select DAELLIPS and click Run.
- Enter "DAELLIPS" into the Command Line and press <ENTER>.
See this process in the Command Table.
Process Overview
Create ellipsoids from dynamic anisotropy points or model.
Input is either a points or a block model file (not both).
Typically, points data will be created by the ANISOANG process, although it can be from other sources. An input points file must contain coordinate fields (XPT/YPT/ZPT) and at least one angle field. Up to three angle fields can be specified, representing the dip direction (DIPDIR), dip (DIP) and roll (ROLL). Providing at least one directional field is set, the remaining orientations can be static and specified using the @DIPDIR, @DIP and/or @ROLL field.
Model data will typically be as produced by anisotropic modelling functions. As with points, each cell record must contain at least one angle field.
Ellipsoid centroids, derived from either &POINTS or &MODEL can be optionally declustered (multiple options) and 3 radii are specified to determine the final ellipsoid shape. @XGRID, @YGRID and @ZGRID parameters will define the declustering grid (if declustering is applied). The original of the grid can be specified (@XORIG, @YORIG and @ZORIG) if the input data is of the points type.
You can also choose (@CENTRE) as to how the ellipsoid centroid is positioned, either at the point or subcell centroid (0) or on the centre of the grid or the parent cell within which the point lies.

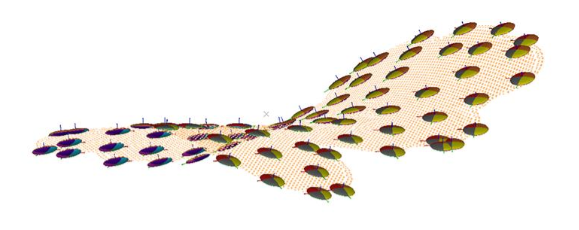

In all cases, output will be a data file of the ellipsoids data type, and can be loaded into a 3D view to visualize ellipsoid location(s) and orientation(s).
Input Files
|
Name |
Description |
I/O Status |
Required |
Type |
|
POINTS |
Angle data in points format created by ANISOANG. It must include XPT, YPT, ZPT and at least one angle field. Either a POINTS or a MODEL file must be selected but not both. |
Input |
Yes, if &MODEL not specified |
Points |
|
MODEL |
Angle data in model format created during dynamic anisotropy modelling. It must include at least one angle field. Either a POINTS or a MODEL file must be selected but not both. |
Input |
Yes, if &POINTS not specified |
Block Model |
Output Files
|
Name |
I/O Status |
Required |
Type |
Description |
|
ELLIPSES |
Output |
Yes |
Ellipsoid |
Output ellipsoids. Ellipsoids to be displayed in the 3D Window. |
Fields
|
Name |
Description |
Source |
Required |
Type |
Default |
|
ANGLE1 |
A field in the POINTS or MODEL file that includes rotation around AXIS1. AXIS1 specified in Parameters. |
POINTS or MODEL |
No |
Undefined |
Undefined |
|
ANGLE2 |
A field in the POINTS or MODEL file that includes rotation around AXIS2. AXIS2 specified in Parameters. |
POINTS or MODEL |
No |
Undefined |
Undefined |
|
ANGLE3 |
A field in the POINTS or MODEL file that includes rotation around AXIS3. AXIS2 specified in Parameters. |
POINTS or MODEL |
No |
Undefined |
Undefined |
Parameters
|
Name |
Description |
Required |
Default |
Range |
Values |
|
DECLUST |
Flag to select declustering option. Default (0).
0:do not use declustering.
1:random selection within each grid cell (different selection for each run).
2: pseudo random selection within each grid cell (repeatable).. 3: nearest to grid centre. |
No |
Yes |
0,3 |
0,1,2,3 |
|
RAD1/2/3 |
Ellipsoid radius in X/Y/Z direction. |
Yes |
10 |
Numeric |
Undefined |
|
FACTOR |
Dividing factor for adjusting size of RAD1, RAD2 and RAD3. |
Yes |
1 |
1 |
1 |
|
ANGLE1/2/3 |
ANGLE1/2/3 rotation around AXIS1/2/3. Only used if there is no ANGLE1 field. Default (0). |
No |
0 |
Numeric |
Undefined |
| AXIS1 | AXIS1 for rotation where 1=X, 2=Y and 3=Z. Default (3). | No | 3 | 1,3 | 1,2,3 |
| AXIS2 | AXIS2 for rotation where 1=X, 2=Y and 3=Z. Default (1). | No | 1 | 1,3 | 1,2,3 |
| AXIS3 | AXIS3 for rotation where 1=X, 2=Y and 3=Z. Default (3). | No | 3 | 1,3 | 1,2,3 |
|
X/Y/ZGRID |
Size of declustering grid in X/Y/Z direction. Not required if @DECLUST=0 or input file is MODEL. |
No if DECLUST=0, otherwise yes |
10 |
Numeric |
Undefined |
|
X/Y/ZORIG |
X/Y/Z coordinate of grid origin. Not required if @DECLUST=0 or input file is MODEL. Default (0). |
No if DECLUST=0, otherwise yes |
0 |
Numeric |
Undefined |
|
CENTRE |
Flag to define where the ellipsoid should be located. Only required if @DECLUST > 0.
0: centre the ellipsoid on the coordinates of the point or subcell centre. 1: centre the ellipsoid on the centre of the grid or parent cell within which the point lies. . |
No if DECLUST=0, otherwise yes |
1 |
0,1 |
0,1 |
