DILUTMOD |
Introduction
|
This is a Superprocess and running it may have an effect on other Datamine files in the project. More... |
Dilute the grades in a parent cell block model by a user defined dilution width. Grades are adjusted in cells which have adjacent cells of a different rock type.
The user must specify a ROCK field and the process identifies every parent cell face at which the the value of the ROCK field changes between adjacent cells. The grade of the parent cell is adjusted by the addition of material from the adjacent cell and the loss of the same volume of material to the adjacent cell. The dilution width is defined by parameters which can be different in different directions.
The output files include a copy of the input model with diluted instead of undiluted grades, a combined model containing both undiluted and diluted grades, and a resource table showing tonnes and grades for every value of the ROCK field for both the undiluted and diluted models.
Files, Fields and Parameters
Input Files
|
Name |
Description |
I/O Status |
Required |
Type |
|
MODIN |
Input block model file. |
Input |
Yes |
Model |
Output Files
|
Name |
I/O Status |
Required |
Type |
Description |
|
MODOUT1 |
Output |
Yes |
Model |
Diluted output model file - same as MODIN except that all grades are diluted. |
|
MODOUT2 |
Output |
No |
Model |
Combined output model file - includes both undiluted and diluted grade fields. Diluted grade field names have D as the first character. |
|
RESOURCE |
Output |
No |
Model |
Resources table comparing tonnes and grade for undiluted and diluted models classified by *ROCK. |
Fields
|
Name |
Description |
Source |
Required |
Type |
Default |
|
ROCK |
Rock field. |
IN |
Yes |
Any |
Undefined |
|
DENSITY |
Density field. If the model does not include a DENSITY field then the density can be set with parameter @DENSITY |
IN |
No |
Numeric |
Undefined |
|
GRADE1 |
Grade field 1 |
IN |
Yes |
Any |
Undefined |
|
GRADE2-10 |
Additional, optional, grade fields. |
IN |
No |
Any |
Undefined |
Parameters
|
Name |
Description |
Required |
Default |
Range |
Values |
|
XWIDTH |
Dilution width in X direction |
No |
1 |
Undefined |
Undefined |
|
YWIDTH |
Dilution width in Y direction |
No |
1 |
Undefined |
Undefined |
|
ZWIDTH |
Dilution width in Z direction |
No |
1 |
Undefined |
Undefined |
|
DENSITY |
Density value to be used if DENSITY field does not exist. |
No |
1 |
Undefined |
Undefined |
Notes
Input Model File
The input MODEL file is a normal or rotated block model containing only parent cells. It must contain a numeric rock type field, *ROCK, which is used to identify the adjacent cell faces across which dilution occurs. The model must also contain at least one grade field.
*ROCK Field
The numeric *ROCK field is used to identify the boundaries across which dilution occurs. If dilution is defined as only being between ore and waste then the *ROCK field should have just two values eg ORE=1 for ore and ORE=0 for waste. If the *ROCK field has more than two values then dilution will occur at every face where the *ROCK value changes.
Grade Fields
Up to 10 grades can be selected using the *GRADEi fields. A minimum of one grade field must be selected. Grade fields must not have absent data values. If any values are absent the process will terminate with an error message.
|
|
GRADE fields are subject to a 23-character limit, not the typical 24-character limit required elsewhere in Studio. This is because, for each GRADE field, an equivalent diluted grade field is created, which automatically includes a "D" prefix. As such, you can only specify grade fields up to 23 characters to ensure there is room for the prefixed equivalent, and that no attempt is made to create identical field names. |
Density
The *DENSITY field can be used to select density from the input model. The default field name is DENSITY. If a density field is not used then the @DENSITY parameter will be used instead. The default value is 1. If a *DENSITY field is selected and there are absent values in the model then the process will terminate with an error message.
Dilution Method
If two adjacent cells have different *ROCK values then the process will mix a volume of material calculated as the area of the common face multiplied by the dilution width perpendicular to the face with the corresponding volume of material from the adjacent cell. The adjusted grade of the parent cell will then be calculated using tonnage weighting.
Dilution will not occur if the adjacent cell has an absent data *ROCK value or if there is no adjacent cell in the model.

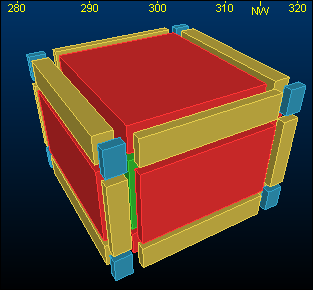

To calculate the diluted grade each parent cell is divided into 27 subcells as illustrated in the graphic. Initially all subcells are assigned the same grades as the parent cell. After dilution the average diluted grade of the parent cell will be calculated.
Each face of the parent cell includes 9 subcells. Each red subcell can only be diluted with the one corresponding subcell in the adjacent plane. Each yellow subcell can be diluted with one or two adjacent subcells on different planes. Each blue subcell can be diluted with one, two or three adjacent subcells on different planes.
If a subcell is diluted across more than one face then dilution is calculated sequentially. First it is diluted with the adjacent subcell in the negative or positive X direction and its grades are recalculated, then it is diluted with the adjacent subcell in the Y direction and finally with the subcell in the Z direction.
The dilution widths in the X, Y and Z directions are defined by the parameters @XWIDTH, @YWIDTH and @ZWIDTH. These correspond to the subcell sizes in the graphic above for the 26 subcells on the parent cell faces. The blue corner subcells have a size of @XWIDTH by @YWIDTH by @ZWIDTH. In the dilution process the grade of each subcell is averaged with the corresponding subcell in the adjacent parent cell.
Output Files
Output Model 1
Output model 1 has the same fields as the input model except that:
- the grades selected by the GRADEi fields are the diluted values
- if the input model did not include a *DENSITY field then field DENSITY will be added with a value defined by the @DENSITY parameter.
Output Model 2
Output model 2 has the same fields as the input model except that:
- it includes both the undiluted and diluted grades. The diluted grade field names are the same as the undiluted names except they are preceded by the letter D.
- if the input model did not include a *DENSITY field then field DENSITY will be added with a value defined by the @DENSITY parameter.
- it includes the numeric field DILUTED which has a value of 0 if the cell is undiluted and 1 if it is diluted.

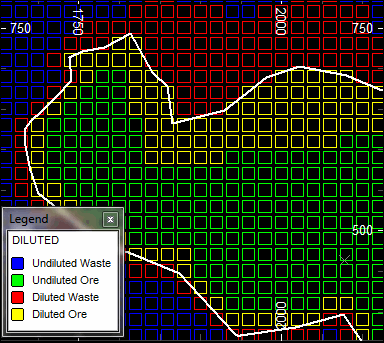

The bench plan above shows the different classifications of material: undiluted waste, undiluted ore, diluted waste and diluted ore.
Output Resource Table

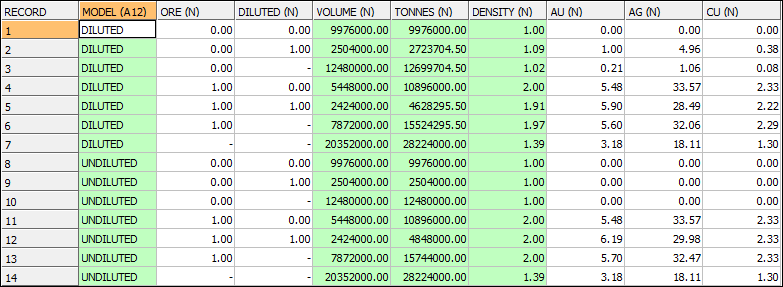

The Resources table shows tonnes and grades classified by *ROCK field ORE for both the diluted and undiluted models.
In the table above the *ROCK field ORE has a value 1 for ore and 0 for waste and the density of undiluted ore is 2 and waste is 1. The column DILUTED identifies undiluted material (0) and diluted material (1). A DILUTED value of absent (-) shows the combined undiluted plus diluted material.
For example record 4 shows that in the Diluted model there are 5,448,000 m3 of undiluted ore with an AU grade of 5.48 g/t and record 5 shows 2,424,000 m3 of diluted ore with an AU of 5.90 g/t. Record 6 shows the total of diluted and undiluted ore.
Comparing record 12 with record 5 shows that 2,424,000 m3 of undiluted ore at 6.19 g/t AU have been diluted to reduce the grade of this material to 5.90 g/t AU.
Records 7 and 14 show the tonnes and grades for the total Diluted and Undiluted models respectively. These two sets of figures are identical because when averaged over ore and waste there is no change in the grade.
Example
!DILUTMOD &MODIN(model1), &MODOUT1(model1_dilute),
&MODOUT2(model1_combined),
&RESOURCE(model1_resources),
*ROCK(ORE),
*GRADE1(AU), *GRADE2(AG), *GRADE3(CU),
@XWIDTH=1,
@YWIDTH=1, @ZWIDTH=2
DILUTMOD
... importing files, fields and parameters
... model MODIN includes 2 values for field ORE:
- 0
- 1
Temporary files will not be deleted
... validating data
... calculating dilution
- part 1 of 3
- part 2 of 3
- part 3 of 3
... calculating output model
... combining original and diluted models
... calculating resource tonnes and grades
DILUTMOD finished
Output diluted model file MODEL1_DILUTE contains 2544 records
Output combined model file MODEL1_COMBINED contains 2544 records
Resources table MODEL1_RESOURCES contains 14 records
