Process Help PLOTSX - plot an oblique section through drillholes with annotation & barcharts |
Process Name |
Menu Path |
Link to Command Table |
PLOTSX |
Command line only |
Introduction
Enhanced plotting of drill hole sections and level plans. Used in conjunction with PLOTFX, PLOTSX will produce high quality section plots.
How to use
Features include the following:
-
annotation of any field on either side of trace,
-
variable location/size and orientation of bore hole ID,
-
one or two histograms with or without bar annotation,
-
annotation of downhole distance and/or distance from the section plane,
-
line plots for multiple variables parallel to the trace,
-
end of hole mark and annotation with distance,
-
directional indicators at each end of the trace (entering section or leaving section),
-
an optional plan window showing section line, projection distance and hole trace,
-
parameters are provided to control size, location and color of various annotations, the trace and ticks,
-
several levels of filling and smoothing for plotting the hole trace.
Samples are selected for projection onto the section if they lie partially or totally within the three dimensional rectangular box defining the projection limits. If a sample crosses the box it is clipped at the boundary. The section may be any vertical or horizontal plane and is specified using the end points of the section line @X1, @X2, @Y1, @Y2 in the case of a section and also the @BLEVEL parameter for level plans. For the latter case @X1 and @X2 should be the range of the X axis variable and @Y1 = @Y2 = the midpoint value along the Y axis. The RL of the plan is specified by @BLEVEL.
As with any section plotting, care must be taken when specifying XMIN, XMAX, YMIN, YMAX. For sections and RL plans set @XMIN = 0 and @XMAX = section length. For sections @YMIN and @YMAX will equal the lower and upper RL(Z) limits. Remember to increase @YMAX to allow for the plan window + 10mm if this is being used. In the case of RL plans @YMIN and @YMAX should be - and + half the range of the Y axis variable.
Complex plots with several annotations may be produced by using multiple PLOTSX commands. In all but the initial command plotting of the ticks, trace, end of hole and BHID annotation should be disabled using @TRACE = 0, @TIKTYP = 0 and @BHSIZE = 0.
Offsets and plotted values are at right angles to the sample. The offsets are relative to the side as chosen by the @SIDE parameter or the top of the bar in the case of histograms.
In order to use the trace smoothing or gap filling it is necessary to specify a collar and a survey file (@OPTMSE = 1, 2 or 3). These options will improve the quality of the hole trace where long samples in curved holes cause problems.
Files, Fields and Parameters
Input Files
Name |
Description |
I/O Status |
Required |
Type |
IN1 |
Input drillhole file, in standard sample format. If there is a field in this file, then the given colour number will be applied to each sample trace or barplot. |
Input |
Yes |
Drillhole |
PROTO |
Plot prototype file. Must contain the fields X, Y, S1, S2 and CODE (numeric, explicit) and XMIN, XMAX, YMIN, YMAX, XSCALE, YSCALE (numeric, implicit). If these last 6 values set in PROTO , then corresponding parameters need not be set. |
Input |
Yes |
Plot Prototype |
IN2 |
Optional input collar file, in standard collar format. |
Input |
No |
Undefined |
IN3 |
Optional input survey file, in standard survey format. |
Input |
No |
Undefined |
ANNFILE |
Optional annotation input file for specifying annotations as an alternative to the interactive input. If specified then PLTYPE , XOFFSET , YOFFSET are ignored. Compulsory fields: FIELD A8- Field to annotate. TYPE N - Annotation type; 1 = annotate relative to trace; 2 = bar plot; 3 = annotate relative to previous bar plot; 4 = line plot; SIDE N - Side of trace 1=RHS,2=LHS. Optional fields: CHARSIZE N - Annotate character size. N - Annotate/bar/line colour. XOFFSET N - Offset perpendicular to trace. YOFFSET N - Offset along trace. NDP N - Number of decimal places. For bars: CUTVAL N - Value of field for maximum bar. CUTMM N - Optional height of maximum bar, default is 10mm. Optional fields if FIELD is numeric: LOWER N - Lower bound non-inclusive. UPPER N - Upper bound inclusive. LOWER and UPPER define the range on FIELD for which the particular annotation will plotted. Special values - and + may be used. For TYPE = 2 and 4 offsets apply to base of bar or line axis. |
Input |
No |
Undefined |
Output Files
Name |
I/O Status |
Required |
Type |
Description |
PLOT |
Output |
Yes |
Plot |
Output plot file. |
Fields
Name |
Description |
Source |
Required |
Type |
Default |
SAMPCOLR |
Sample colour field, used preferentially for plotting of trace, assays, ticks and barplots. (). |
IN1 |
No |
Numeric |
Undefined |
Parameters
Name |
Description |
Required |
Default |
Range |
Values |
X1 |
X co-ordinate of section line start. |
Yes |
Undefined |
Undefined |
Undefined |
Y1 |
Y co-ordinate of section line start. |
Yes |
Undefined |
Undefined |
Undefined |
X2 |
X co-ordinate of section line end. |
Yes |
Undefined |
Undefined |
Undefined |
Y2 |
Y co-ordinate of section line end. |
Yes |
Undefined |
Undefined |
Undefined |
NDP |
Number of decimal places for grade values. |
Yes |
Undefined |
Undefined |
Undefined |
DISTANCE |
Maximum projection distance to section. Must be specifed unless DPLUS and DMINUS are both specified. |
No |
Undefined |
Undefined |
Undefined |
DMINUS |
Negative distance from section plane. If not specified then DISTANCE will be used. |
No |
Undefined |
Undefined |
Undefined |
DPLUS |
Positive distance from section plane. If not specified then DISTANCE will be used. |
No |
Undefined |
Undefined |
Undefined |
OPTMSE |
Level of hole trace filling and smoothing: 0=none; 1=join gaps; 2=split long samples 3=automatic splitting; (0) |
No |
0 |
0,3 |
0,1,2,3 |
PLTYPE |
Type of plot: 0=plot trace only; 1=annotate sample values; 2=single side barplot; 3=double side barplot; 4=line plot; (1) |
No |
1 |
0,4 |
0,1,2,3,4 |
BARANN |
Annotation outside bars on barplot type plots: 0=no; 1=yes; (0) |
No |
0 |
0,1 |
0,1 |
PLVIEW |
Plot orientation: 0=standard section plot; 1=section with plan window; 2=plan plot; (0) |
No |
0 |
0,2 |
0,1,2 |
PLDIST |
Plan window distance for PLVIEW=1 only. default = 2 DISTANCE |
No |
Undefined |
Undefined |
Undefined |
BLEVEL |
Bench level for use with PLVIEW=2 only. [R.L. of plan plot] |
No |
Undefined |
Undefined |
Undefined |
TRACE |
0 = no hole trace or EOH tick; 1 = plot trace; 2 = plot trace with symbol marking intersection with the plane; 3 = as 1 above with thick line code 1002; 4 = as 2 above with thick line code 1002; |
No |
1 |
0,4 |
0,1,2,3,4 |
TIKLEN |
Tick length each side of hole; (1) |
No |
1 |
Undefined |
Undefined |
TIKTYP |
Tick positioning; 0=no ticks; 1=both sides; 2=RHS; 3=LHS; (1) |
No |
1 |
0,3 |
0,1,2,3 |
SIDE |
Side of hole to use in annotation or barplots. 1=RHS; 2=LHS; (1) |
No |
1 |
1,2 |
1,2 |
DHD |
Plot downhole distance or distance to section 0=none; 1=plot downhole distance; 2=plot distance of sample from section; 3=both; (0) |
No |
0 |
0,3 |
0,1,2,3 |
DHDIST |
Plot DHD parameter[s] at given interval [integer] (0). |
No |
0 |
Undefined |
Undefined |
DHDOFF |
DHD parameter[s] offset in millimetres from hole trace at the right angles to sample. Value > 0 right h. side, <0 left h. side. (0). |
No |
0 |
Undefined |
Undefined |
EOH |
End of hole annotation: 0=nothing; 1='EOH'; 2=downhole distance; 3=both 1 |
No |
0 |
0,3 |
0,1,2,3 |
XOFFSET |
Offset in millimetres from sample centre of annotation at rt. angles to sample (0). |
No |
0 |
Undefined |
Undefined |
YOFFSET |
Offset in millimetres from sample centre of annotation along sample (0). |
No |
0 |
Undefined |
Undefined |
BHSIZE |
Borehole id annotation size: 0=suppress; default= CHARSIZE value; |
No |
Undefined |
Undefined |
Undefined |
BHCOL |
Borehole id annotation colour: default= value; |
No |
Undefined |
Undefined |
Undefined |
BHANG |
Angle for drillhole id, 0=horizontal, -90=vertically upwards, -= in line with hole trace; += at 90 degrees to hole trace. |
No |
Undefined |
Undefined |
Undefined |
BHPOS |
Borehole id position: 1=top of hole; 2=bottom of hole; (1) |
No |
1 |
1,2 |
1,2 |
TRCOL |
Colour of trace: -1=same as default parameter; 0=use colour field if present; >=1 any other colour. (-1) |
No |
-1 |
-1,64 |
Undefined |
TIKCOL |
Colour of ticks: -1=same as default parameter; 0=use colour field if present; >=1 any other colour. (-1) |
No |
-1 |
-1,64 |
Undefined |
ANNCOL |
Colour of assay [or other] annotation down the side of the hole: -1=same as default parameter; 0=use colour field if present; >=1 any other colour. (-1) |
No |
-1 |
-1,64 |
Undefined |
BARCOL |
Colour of bars: -1=same as default parameter; 0=use colour field if present; >=1 any other colour. (-1) |
No |
-1 |
-1,64 |
Undefined |
FILGAP |
Controls filling of gaps and splitting of long samples/gaps in straight [1 survey pt] holes: 0=gaps not filled; 1=gaps filled; 2=enables splitting according to GAPLEN even if hole is straight. (0) |
No |
0 |
0,1,2 |
0,1,2 |
GAPLEN |
Length to split long samples or gaps to for more accurate plotting for OPTMSE=2. (1) |
No |
1 |
Undefined |
Undefined |
FILL |
Line density in mm for pseudo colour fill of sample barplot. Zero for no fill (0). |
No |
0 |
Undefined |
Undefined |
CHARSIZE |
Character size in millimetres (4). |
No |
4 |
Undefined |
Undefined |
CHARSMIN |
Minimum annotation character size. If space available for annotation is less than CHARSMIN the annotation is not plotted at all. Otherwise the characters are shrunk to fit in available space. |
No |
Undefined |
Undefined |
Undefined |
ASPRATIO |
Aspect ratio, width / ht. for chars (0.9). |
No |
0.9 |
Undefined |
Undefined |
APPEND |
Plot append flag. If set to 1 then the new plot will be appended to the PLOT file, assuming it exists and is a proper plot file. (0) |
No |
0 |
0,1 |
0,1 |
|
Colour [as 'pen' number] for plot (1). |
No |
1 |
Undefined |
Undefined |
XMIN |
Minimum value of X for plot [Suggest 0]. None of XMIN, XMAX, YMIN, YMAX, XSCALE, YSCALE need be set if this information is already in the prototype. |
No |
Undefined |
Undefined |
Undefined |
XMAX |
Maximum value of X for plot [Suggest section length as defined by X1 , Y1 , X2 , Y2]. |
No |
Undefined |
Undefined |
Undefined |
YMIN |
Minimum value of Y for plot [Lowest Z value]. |
No |
Undefined |
Undefined |
Undefined |
YMAX |
Maximum value of Y for plot [Highest Z value]. |
No |
Undefined |
Undefined |
Undefined |
XSCALE |
X scale in user data units per millimetre. |
No |
Undefined |
Undefined |
Undefined |
YSCALE |
Y scale in user data units per millimetre. |
No |
Undefined |
Undefined |
Undefined |
Notes
Interaction depends on the value of PLTYPE selected:
PLTYPE = 0: |
trace only. no interaction |
PLTYPE = 1: |
Annotate sample values. Sections to be annotated with data values
Please enter field for annotation << FIELD 1> |
PLTYPE = 2: |
Single side barplot. Bar plot to be generated along boreholes
Please enter numeric field for barplot, and corresponding field value for 10mm barchart separated with a comma - no spaces please FIELD 1> |
PLTYPE = 3: |
Double side barplot. Bar plots to be generated along boreholes
Please enter 2 numeric fields for barplot (one per line) and field values for 10mm barchart separated with a comma - no spaces please FIELD 1> FIELD 2> |
PLTYPE = 4: |
Line plot Line plots to be generated alongside boreholes
Please enter up to 3 numeric fields (one per line) and field values for 10mm lineplot, plus optional color, all separated by commas FIELD 1> FIELD 2> FIELD 3> |
Examples
Example 1
R.L. level plan using PLOTFX for frame, title block and legend. Data range is (8000-8200) East and (1000-1160) North and the plan is for a mid-bench R.L. of 105 and a bench height of 10 meters (100RL-110RL).
!PLOTFX |
&PLOT(PLAN),@XINC=20,@YINC=20,@IBASE=1,@TBLOCK=1, @LBLOCK=1, |
|
@XGID='E',@YGID='N',@XMIN=8000,@XMAX=8200,@YMIN=1080,@YMAX=1080, |
|
@XSCALE=0.2,@YSCALE=0.2 |
OUTBACK MINING COMPANY |
|
BIG ROCK MINE |
|
PLAN RL =105 |
|
INFLUENCE 5 Metres |
|
T1 * Grade Colour range * 1 |
|
T2 * -1.0g/tAu * 1 |
|
T2 * 1.0-3.0g/tAu * 4 |
|
T2 * 3.0-5.0g/tAu * 3 |
|
T2 * 5.0- g/tAu * 2 |
!PLOTSX |
&IN1(SAMPLE),&PROTO(PLAN),&PLOT(PLAN),@X1=8000,@X2=8200,@Y1=1080,@Y2=1080, |
|
@DISTANCE=5,@NDP=2,@PLTYPE=1,@PLVIEW=2,@BLEVEL=105,@ANNCOL=0,@APPEND=1.0, |
|
@XMIN=0,@XMAX=200,@YMIN=-80,@YMAX=80 |
AU |
|
The above command annotates the samples with color coded Au grade values, where the color is determined by the field in SAMPLE file.
Example 2

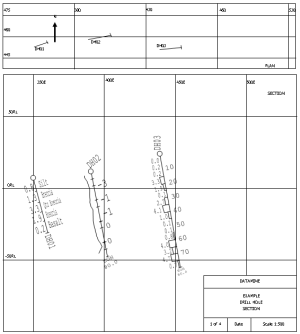

This example shows the commands used to produce the examples of annotation shown in Figure 1.
!REM |
Create Plot Prototype with scaling. |
|
|
!PROTOP |
&OUT(PROTO) |
1 |
|
440 |
|
490 |
|
10 |
|
10 |
|
410 |
|
460 |
|
Y |
|
.5 |
|
.5 |
|
330 |
|
- |
|
-100 |
|
- |
|
!REM |
Plots grid and title block. |
!PLOTFX |
&PROTO(PROTO),&PLOT(SPLOT),@XINC=50,@YINC=50,@IBASE=9, |
|
@XGSTART=350,@YGSTART=-50,@TBLOCK=2,@XGID='E',@YGID='RL', |
|
@SPLAN=1,@PLDIST=45,@PRDIST=15,@PLX1=330,@PLX2=530, |
|
@PLY1=460,@PLY2=460,@CHARSIZE=4,@APPEND=0 |
DATAMINE * 4 |
|
EXAMPLE * 4 |
|
DRILL HOLE *4 |
|
SECTION * 4 |
|
|
|
!REM |
Each drillhole is processed separately to illustrate different features. |
!REM |
Drillhole DH01 annotated with AU. |
|
|
!PLOTSX |
&IN1(SAMPLE),&PROTO(PROTO),&PLOT(SPLOT),&IN2(COLLARS), |
|
&IN3(SURVEYS),@X1=330,@X2=530,@Y1=460,@Y2=460, |
|
@DISTANCE=15,@NDP=1,@OPTMSE=1,@PLTYPE=1,@PLVIEW=1,@PLDIST=45, |
|
@TIKLEN=2,@TIKTYP=3,@SIDE=2,@XOFFSET=3,@BHSIZE=6, |
|
@BHANG=-,@BHPOS=2,@CHARSIZE=3,@XMIN=0,@XMAX=200,@YMIN=-100, |
|
@YMAX=130,@APPEND=1,BHID='DH01' |
AU |
|
|
|
!REM |
Drillhole DH01 annotated with lithology code. |
|
|
!PLOTSX |
&IN1(SAMPLE),&PROTO(PROTO),&PLOT(SPLOT),&IN2(COLLARS), |
|
&IN3(SURVEYS),@X1=330,@X2=530,@Y1=460,@Y2=460, |
|
@DISTANCE=15,@NDP=0,@OPTMSE=1,@PLTYPE=1,@PLVIEW=1, |
|
@PLDIST=45,@TICKLEN=2,@TIKTYP=2,@TRACE=0,@XOFFSET=2, |
|
@BHSIZE=0,@CHARSIZE=3,@APPEND=1,@XMIN=0,@XMAX=200, |
|
@YMIN=-100,@YMAX=130,BHID='DH01' |
LCODE |
|
|
|
!REM |
Drillhole DH02 annotated with distance from section and line plot. |
|
|
!PLOTSX |
&IN1(SAMPLE),&PROTO(PROTO),&PLOT(SPLOT),@X1=330, |
|
@Y1=460,@X2=530,@Y2=460,@NDP=1,@DISTANCE=15, |
|
@PLTYPE=4,@PLVIEW=1,@PLDIST=45,@TIKLEN=2,@SIDE=2,@DHD=2, |
|
@DHDIST=10,@DHDOFF=3,@EOH=3,@XMIN=0,@XMAX=200,@YMIN=-100, |
|
@YMAX=130,@BHSIZE=6,@BHANG=-45,@CHARSIZE=4,@APPEND=1, |
BHID='DH02' |
|
AU,0.5,1 |
|
|
|
!REM |
Drillhole DH03 annotated with downhole distance and bar plot. |
|
|
!PLOTSX |
&IN1(SAMPLE),&PROTO(PROTO),&PLOT(SPLOT),@X1=330, |
|
@Y1=460,@X2=530,@Y2=460,@NDP=1,@DISTANCE=15, |
|
@PLTYPE=2,@BARANN=1,@PLVIEW=1.0,@PLDIST=45, |
|
@TRACE=1.0,@TIKLEN=2.0,@SIDE=2.0,@DHD=1.0, |
|
@DHDIST=10.0,@DHDOFF=3.0,@EOH=3.0,@XOFFSET=2.0, |
|
@YOFFSET=0.0,@XMIN=0,@XMAX=200,@YMIN=-100,@YMAX=130, |
|
@BHSIZE=6,@BHANG=-90,@BHPOS=1.0,@CHARSIZE=3.0, |
|
@ASPRATIO=0.9,@APPEND=1.0,BHID='DH03' |
AU,5,AU |
|
|
|
!end |
|
Error and Warning Messages
Message | Description | Solution |
|
|
|
|
|
|
