Process Help WEAVE - output keyfields from two input files



Process Name	Menu Path	Link to Command Table
WEAVE	ata ribbon | Data Tools | Relational | Weave	Click here



• Introduction
• Files, Fields and Parameters

Introduction

Joins two sorted files on designated keyfields. Matching input fields and all records are output.

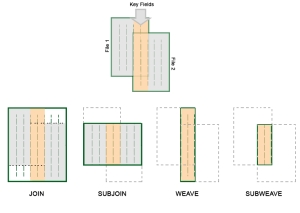

This process belongs to a group of four similar ones within the Datamine process collection; JOIN, SUBJOI, WEAVE and SUBWVE. Each provides a different outcome, as described by the following diagram:

---

Files, Fields and Parameters

Input Files

Name	Description	I/O Status	Required	Type
IN1	First file to be updated (sorted on required keyfields).	Input	Yes	Table
IN2	Second file (update file) (sorted on required keyfields).	Input	Yes	Table

Output Files

Name	I/O Status	Required	Type	Description
OUT	Output	Yes	Table	Output file.

Fields

Name	Description	Source	Required	Type	Default
KEY1	Keyfield 1 for matching on.	IN1, IN2	Yes	Any	Undefined
KEY2	Keyfield 2.	IN1, IN2	No	Any	Undefined
kEY3	Keyfield 3.	IN1, IN2	No	Any	Undefined
KEY4	Keyfield 4.	IN1, IN2	No	Any	Undefined
KEY5	Keyfield 5.	IN1, IN2	No	Any	Undefined
KEY6	Keyfield 6.	IN1, IN2	No	Any	Undefined
KEY7	Keyfield 7.	IN1, IN2	No	Any	Undefined
KEY8	Keyfield 8.	IN1, IN2	No	Any	Undefined
KEY9	Keyfield 9.	IN1, IN2	No	Any	Undefined
KEY10	Keyfield 10.	IN1, IN2	No	Any	Undefined
