Command Help merge-wf-to-object



Command Name	Menu	Quick Key	Link to Command Table
merge-wf-to-object	Command line only	wfmto	Click here

Description

Copy/merge all selected wireframe data into the current strings object. The selected wireframe data can come from multiple string objects.

How to use

1. In the Current Objects toolbar, create a new wireframe object to contain the merged/copied data, assigning it as the current wireframe object. This will be done automatically after creation although you can also manually set an object to current by right-clicking it in the Sheets control bar and selecting Make Current Object.

2. In any 3D window, select the wireframe data that need to be copied/merged. More about wireframe selection...

3. Run the command.

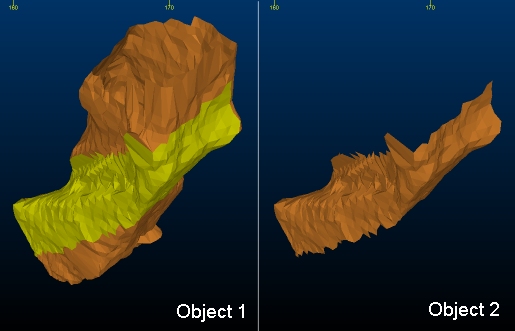

4. The selected data will be copied to the new wireframe object, e.g.:
