Clipping Data Clipping Data at Section Limits |

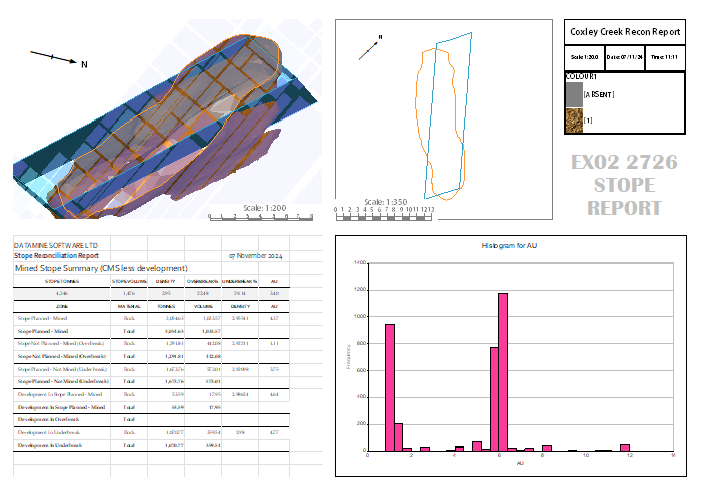

Clipping Data in the Plots Window
The display of drillhole data and 3D objects may be restricted within the limits of the section definition. The clipping limits are independent of the view direction, although this is only apparent when the view direction is not perpendicular to the section azimuth.
From the Plots window:
To change the clipping limits
With the Plots window active, activate theViewribbon then choose eitherSection | Set Widthor select a predefined width from theWidthdrop-down menu
To turn on and off section clipping
Choose Section | Apply Clipping to turn on or off section clipping.
 |
