Create a Line of Holes

Use this activity to add a line of holes to a drill pattern that has assigned surfaces. For context, see Design a Drill Pattern.

Activity Steps

1. Select the Design module.
2. Right-click a drill pattern in the DataBlast Items Tree and select Edit Selected Drill Pattern in Designer from the menu.

   The drill pattern displays in design mode.

3. In the DataBlast Items Tree, select the set of design lines (or other object) that includes a polyline.
4. On the Holes Ribbon Menu, in the Hole Patterns group, click Line Hole Pattern.
5. Select the polyline(s) and right-click to finish the selection.
6. Select the end of the polyline from which to start the hole numbering.

   The Line Hole Pattern screen displays.

7. To load settings from a template, select the Pattern Template.
8. Select a Mine Block from the defined mine blocks.
9. To offset the first hole from the start of the polyline(s), enter the Hole Start Offset.
10. Select the Pattern Spacing from:
    • Exact Intervals—Enter the Spacing.
    • Evenly Spread over Line Segments—Enter the Spacing.
11. Select the drill Diameter from the allowed diameters. See Configure Mine Site Settings.
12. Enter the Minimum Valid Length for holes. Holes are not created if the collar and toe positions are less than this length apart.
13. Select the Icon for how the holes display in the Viewport.
14. Select the Angle Increment from:
    • Free—Do not limit hole angle fractions.
    • 0.1°
    • 0.5°
    • 1°
    • 5°

    Note: The drill machine (for example a rotary style drill) may limit the angles at which holes can be drilled. This setting also affects later edits to the hole bearings.

15. Select the Default Hole Angle from:
    • Angle Relative to Horizon—Enter an angle.
    • Perpendicular to Current Coordinate System
16. Select the Projection from:

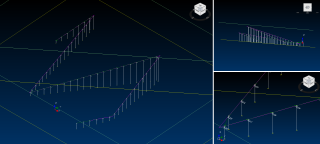

    • Use Polyline Elevation for Collar

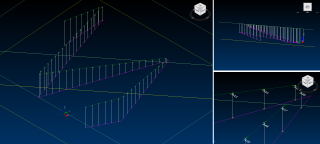

    • Use Polyline Elevation for Toe

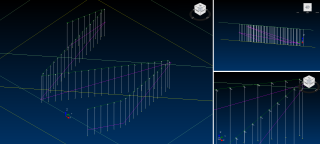

    • Ignore Polyline Elevation (default)—Holes are created based on the defined collar and toe targets or surfaces. See Assign Surfaces to a Drill Pattern and Define Fixed Targets.



17. Enter toe offsets if required:
    • Drill Toe Offset—A negative number creates holes that are drilled below the excavation surface. A positive number creates a holes with a standoff above the excavation surface.
    • Charge Toe Offset—Enter a value if you do not want to load explosives at the bottom of the hole.
18. Define the hole numbering scheme:
    1. Select numbering from Alphanumeric and Numeric.

       Note: This hole numbering has less options than the hole numbering scheme defined when you Create a Mine Site Database.

       • Alphanumeric here is the equivalent of setting the Row Numbering Type to Alphabetic and the Echelon Numbering Type to Numeric.
       • Numeric here is the equivalent of setting the Row Numbering Type to Continuous Numeric.
    2. Enter the Minimum Digits.
    3. Enter a Prefix if required.

    Note: You can Customise Hole Numbering after creating the holes.

19. If you changed template settings but want to revert to the template settings, click Reload Template.
20. To save the settings as a template:
    1. Click Save Template or Save Template As.

       The Template screen displays.

    2. Enter a Name.
    3. Click OK.

    Note: To rename a template later, see Maintain Designer Pattern Layouts.

21. Click OK.
22. Select the side of the row for the direction of the hole toe; that is, the hole bearing.

    DataBlast Ignite calculates the hole positions.

23. Click Save Changes.
