POLYDC - enhanced declustering of sample data



Process Name

Menu Path

Link to Command Table

POLYDC

Click here



Introduction




This is a Superprocess and running it may have an effect on other Datamine files in the project. More...



The POLYDC process calculates a set of declustered weights for a set of sample data using the polyhedra method.  This is the 3D equivalent of 2D polygonal declustering as described on page 247 of "An Introduction to Applied Geostatistics" by Isaaks and Srivastava (ISBN 0-19-505012-6).

It is common practice to take more samples in high grade areas in order to improve the level of confidence in the estimation.  However when data are not on a regular grid then using the full data set with equal weights for all samples will give a biased estimate of the mean, variance and histogram.  Also clustered data can affect an indicator variogram - for further details refer to "Non-parametric estimation of spatial distributions" by A.Journel published in Mathematical Geology, volume 15, number 3, 1983.

Studio includes an alternative declustering process DECLUST which superimposes a 3D grid over the sample data and assigns weights dependent on the number of samples in each grid rectangle.  However the weights calculated by POLYDC are more representative as individual weights are calculated for each sample rather than grouping samples within rectangular blocks and applying an average for the block.

The main features of the POLYDC process are:

  • The input data file may be any file that includes X, Y and Z coordinates.
  • Individual declustered weights are assigned to each sample using the polyhedra method.
  • Structural anisotropy can be applied to define the volume of influence using a standard search volume parameter file.

  • A solid (closed) wireframe model can be used to restrict the influence of each sample.
  • If the wireframe includes a zone field then declustered weights can be created independently for each zone.
  • If the input sample file is desurveyed data then the declustered weight can take account of the sample length.
  • The output sample file includes the declustered weight for each sample.
  • The unweighted and weighted mean grade are reported.
  • An optional output block model file may be created with each cell including an identifier of the nearest sample.
  • An optional output wireframe model may be created with individual wireframes showing the influence of each sample.

Method

A regular grid of points with spacing defined by parameters XINC, YINC, ZINC is superimposed over the sample data and each grid point is assigned the identifier of the nearest sample.  The number of grid points for each sample are then counted and the declustered weight is proportional to this total.  The regular grid is in fact a 3D block model and the nearest sample is calculated using the Nearest Neighbour method.

The main steps are:

  • A sample identifier (_SAMPNUM) is assigned to each sample in the sample IN file.

  • If the input sample file is a desurveyed file and parameter COMPLENG is defined then each sample is composited over interval COMPLENG.

  • A block model prototype is defined to enclose the volume covered by the samples.

  • If an input wireframe is specified then model cells will be created within the wireframe; otherwise they will be created if a samples lies within the search volume.

  • The ESTIMA process is used to assign each cell the identifier (_SAMPNUM) of the nearest sample using the Nearest Neighbour method.

  • The declustered weight is calculated from the number of cells for each value of _SAMPNUM.

  • The unweighted and weighted mean grade oare calculated for the WTFIELD.

The Sample File

If the sample IN file is a standard desurveyed file containing fields BHID, FROM, TO, LENGTH, X, Y, Z, A0, B0, and the COMPLENG parameter has been defined then each sample is composited over the length COMPLENG using the COMPDH process with parameter MODE=1.  This means that the total sample length is divided into an equal number of composites, while keeping the actual composite length as close as possible to COMPLENG.  If the sample IN file does not include the standard desurveyed fields or COMPLENG is undefined then the sample will be considered as a point sample.

Search Volume

The search volume to be used for selecting the nearest sample is defined in one of two ways:

  • parameter RADIUS defines a spherical search volume
  • an anisotropic search volume can be defined by specifying an input search volume parameter file, SRCPARM, and parameter SREFNUM.

If both are defined then values from the parameter file take precedence.

If a search volume parameter file is defined but the SREFNUM parameter is not defined then the first search volume in the file is used.

The second and third dynamic search volumes will be ignored. Only the first search volume is used.

Creating the 3D Grid

The 3D grid is defined using a block model prototype where the cell size is defined by parameters XINC, YINC, ZINC.   Although these parameters are optional it is strongly recommended that they are defined based on the sample spacing and the total volume covered by the samples.  The smaller the cell size the longer the compute time, so appropriate values should be selected.  If in doubt try and keep the number of cells less than 10 million.  Parameter MAXGRDPT defines the maximum number of grid points (ie cells) to be created, in millions.  It can take values up to 100 (ie 100,000,000 points) but the default is set at 10 (10,000,000 points).  If the number of points is calculated as being more than the maximum then the process terminates and the user is requested to increase the value of MAXGRDPT.

If the number of cells is less than 16,000,000 then parent cells of size  XINC*YINC*ZINC will be created; otherwise subcells of size XINC*YINC*ZINC will be created to ensure the maximum IJK value is below 16,000,000 for both the single and extended precision versions.

If an input wireframe is specified then regular model cells will be created within the wireframe.  If a wireframe is not specified then the prototype model will include a margin around the outside that allows the influence of a sample to be extrapolated to the maximum distance defined by the search volume.  Whichever method is used the cells or subcells will all be the same size,  XINC*YINC*ZINC.

Declustered Weights

The declustered weight is calculated by counting the number of subcells for each value of _SAMPNUM and adjusting it so that the sum of the weights is equal to the total number of samples.  The ouput file OUT will includes all the fields from the input sample file IN plus the declustered weight field POLYWGT.

If the samples are regularly spaced then every sample will have a weight of 1.  Clustered samples will have weights less than 1, and isolated samples weights greater than 1.  Both the unweighted and weighted means of the DCFIELD values are reported in the Command Window.

Processes that have an option to use declustered weights include:

  • STATS - weighted statistics
  • CHART - calculation and display of weighted histograms
  • QUANTILE - weighted quantile analysis
  • PPQQPLOT - creation and display of weighted PP and QQ plots

The ZONE Field

If a ZONE field is specified and it exists in the input wireframe triangle file, WIRETR, then declustered weights will be calculated independently for each zone.  If the input sample file IN includes the ZONE field then it will be used to define which samples are associated with each wireframe; otherwise a zone field will be assigned by selecting samples the lie within each wireframe using the SELWF process.

Sample Identifier

A numeric sample identifier,field _SAMPNUM, is assigned to all samples in the IN file.  The first sample has the value 1 and subsequent values increment by 1.  If an output model file, MODEL, is selected then the _SAMPNUM field is included in both the MODEL file and the sample OUT file.  These two files can then be loaded into the graphics windows are the _SAMPNUM field formatted to show the influence of each sample.

Output Wireframe

The optional output wireframe model (POLYTR, POLYPT) is created using the BLKTRI process which forms a solid wireframe around the blocks for each value of _SAMPNUM.  This can add very considerably to the processing time and should only be selected if there are less than a few hundred samples in the input sample IN file. It is not required for calculating the weights and its only purpose is to illustrate the influence of the each sample.  If there are more than a few hundred samples it is best to select a small subset of the output model, MODEL, and run BLKTRI interactively.


Files, Fields and Parameters

Input Files

Name

I/O Status

Required

Type

Description

IN

Input

Yes

Undefined

Input sample data file. This must contain a set of 3D coordinates (eg X,Y,Z) and at least one other field.

SRCPARM

Input

No

Undefined

Search volume parameter file. The 2nd and 3rd dynamic search volumes are not used.

WIRETR

Input

No

Wireframe Triangle

Input wireframe triangle file.

WIREPT

Input

No

Wireframe Points

Input wireframe points file.

Output Files

Name

I/O Status

Required

Type

Description

OUT

Output

Yes

Undefined

Output file containing declustered weights. This will be a copy of the IN file, but will also include the field DCWEIGHT.

MODEL

Output

No

Undefined

Output model file containing sample identifier for each grid point.

POLYTR

Output

No

Wireframe Triangle

Output wireframe triangle file describing polyhedra. Using this option can increase processing time VERY significantly. Do not use if more than a few hundred samples in the IN file.

POLYPT

Output

No

Wireframe Points

Output wireframe points file describing polyhedra. Using this option can increase processing time VERY significantly. Do not use if more than a few hundred samples in the IN file.

Fields

Name

Description

Source

Required

Type

Default

X

X coordinate of sample data.

IN

Yes

Numeric

X

Y

Y coordinate of sample data.

IN

Yes

Numeric

Y

Z

Z coordinate of sample data.

IN

Yes

Numeric

Z

WTFIELD

Field to be used for calculating declustered weights. This ensures that records containing absent data values for that field will be ignored. If a WTFIELD field is not specified then the Z field is used.

IN

No

Numeric

Undefined

ZONE

Field in wireframe triangle file identifying different zones. If selected then a set of weights will be calculated for each zone.

WIRETR

No

Undefined

Undefined

Parameters

Name

Description

Required

Default

Range

Values

COMPLENG

Composite length for discretising samples.

No

0

0,+

Undefined

XINC

Grid increment size in X. If not specified a default is calculated with XINC, YINC, ZINC being equal.

No

Undefined

0.0001,+

Undefined

YINC

Grid increment size in Y. If not specified a default is calculated with XINC, YINC, ZINC being equal.

No

Undefined

0.0001,+

Undefined

ZINC

Grid increment size in Z. If not specified a default is calculated with XINC, YINC, ZINC being equal.

No

Undefined

0.0001,+

Undefined

SREFNUM

Search volume reference number. Only used if a search volume file has been selected.

No

Undefined

Undefined

Undefined

RADIUS

Search radius for calculating weights. Only used if a search volume file has not been selected.

No

100

0.0001,+

Undefined

MAXGRDPT

Maximum number of grid points (* 1,000,000). The process will terminate if more than the maximum will be created.

No

10

1,100

Undefined


Notes

The process is implemented as a 'Super Process'. This means that it is actually constructed as a macro/menu, but is run as a normal process with input from files, fields and parameters as defined in its help file.


Example



!POLYDC &IN(ISAACS), &OUT(DECLUST2), *X(X), *Y(Y), *Z(Z), *WTFIELD(U),

          &WIRETR(WTR1), &WIREPT(WPT1), &MODEL(MOD2),

          &POLYTR(POLYTR1),&POLYPT(POLYPT1),

          @XINC=1,@YINC=2,@ZINC=2,@RADIUS=25



POLYDC - 3D declustering using the polyhedra method



Wireframe WTR1, WPT1 has been specified

Output sample file DECLUST2 will be created

Output model file MOD2 will be created

Wireframe POLYTR1, POLYPT1 will be created

Grid increment size specified as 1 x 2 x 2



Maximum number of grid points is 179900 (approx)

Creating grid points using process ESTIMA ...



ESTIMA TIME >17:28:17

ESTIMA - Grade Estimation

-------------------------

Initialization: Checking input files .............................

Initialization: Checking estimation parameter file ...............

Initialization: Creating estimation table ........................

Initialization: Checking model file ..............................

Initialization: Creating virtual files ...........................

Initialization: Storing data in memory ...........................

Initialization: Completed.

Estimation Table

----------------

Estimations will be carried out for the following combinations of grade and

zone fields:

     Sample    Output    Zones .................................. Search    Est

          Data      Model                                             Vol.Ref   Meth

          Grade     Grade

   1  _SAMPNUM  _SAMPNUM    ........................................  1.0      1

Number of records in the output model =   179905

Number of different grade fields      =        1

Maximum number of estimates           =   179905

This maximum number ignores retrieval criteria, selective updating, unestimated

zones etc, and so the % figure in the progress report may be too low.

>>>       10 estimates,   0.0% completed.    Time  17:28:18 <<<

>>>   179905 estimates, 100.0% completed.    Time  17:28:22 <<<

Total number of estimates                 179905

>>> 179905Records in File C:\Database\Goldex\PolyDecluster\Database\_sp07.dm <<<



Processing grid points ...
Calculating statistics ...

Mean of 273 U values:
    Unweighted  619.71
    Weighted    393.58


Creating polyhedra wireframes ...

BLKTRI TIME >17:28:27

Initialising work areas:



>>> 221320 Records in File C:\Database\Goldex\PolyDecluster\Database\_sp18.dm <<<

>>> 111208 Records in File c:\database\goldex\polydecluster\database\polypt1.dm <<<



Declustering complete

 - Declustered weights file DECLUST2 created with 470 records

 - Model file MOD2 created with 179905 records

  - Wireframe file POLYTR1, POLYPT1 has been created



Example Images

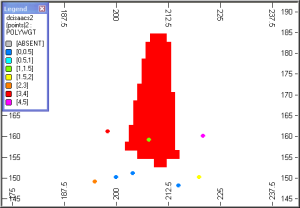

Figure 1 - Slice through a block model
The block model has been filtered on _SAMPNUM so that only blocks corresponding to a single sample are displayed.  The red blocks describe the volume of influence of the single sample (green) located inside the blocks.  The samples are coloured according to the value of POLYWGT as shown in the legend.

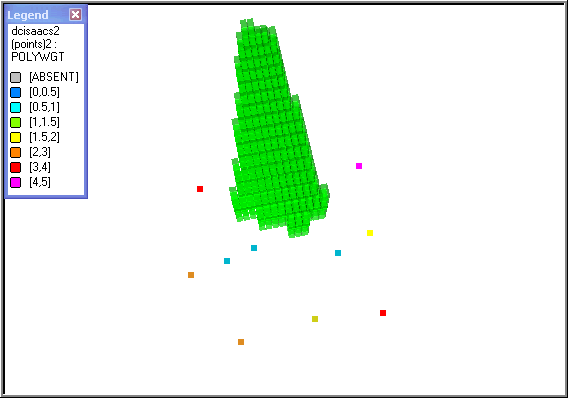

Figure 2 - Volume of influence shown in visualizer
This is similar to Figure 1 except that the volume of influence and the samples are displayed in the visualizer.

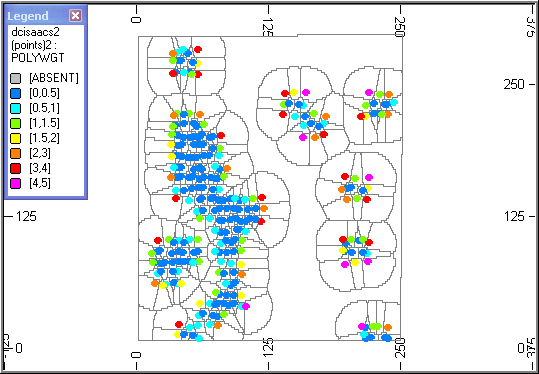

Figure 3 - A slice through the output wireframe
The output wireframe (POLYTR1, POLYPT1) has been sliced in plan, showing the limits of the influence of each sample.  In many places the boundary is an arc with a radius of 25m corresponding to the radius of the search volume.

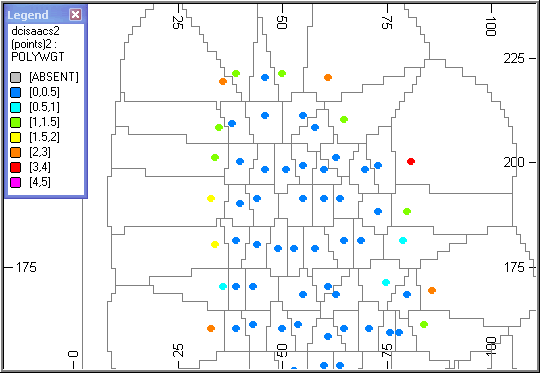

Figure 4 - Another slice through the output wireframe
This is a zoomed in version of Figure 3.







Figure 5 - Another slice through the output wireframe
The same as Figure 3 except the wireframe slices are colour filled.  No particular scheme for the colour selection.
