3D Folder - ROM Stockpile Surfaces

To access this folder:

Display the Project Data control bar, expand any 3D window folder and the ROM Stockpile Surfaces sub-folder.

The Project Data control bar's 3D ROM Stockpile Surfaces folder contains surveyed ROM surface data to compare with previous reporting period surfaces for the purposes of volume change calculations. These calculations are performed as part of the EOM ROM Report.

You can load ROM surface data from any date folder, and even load surfaces from multiple dates to for a visual comparison.

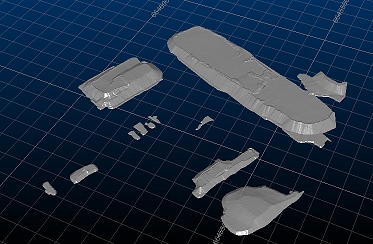

Examples of surveyed ROM surfaces used in EOM reporting

This data is used in the generation of cut-and-fill stockpile volumes using the ROM reporting tool.

3D objects (loaded file data) can be represented by one or more visual overlays. All overlays are listed here, and are independently configurable. Each item is supported by a context menu providing access to a range of overlay-specific functions as well as object-specific functions. It is important to remember that if you edit the underlying object data in any 3D window (e.g. moving a wireframe vertex, or adjusting a boundary string node), this change will be represented in all overlays associated with that object.

Context Menu Options:

Right-clicking any item within this 3D folder shows the following menu options:

Save	Open the selected file in the Datamine Table Editor for viewing and editing the file's contents.
Data >>
>> Reload	Reload the target data object. See Data Reload.
>> Refresh	Refresh the target data object. See Data Refresh.
>> Save As	Save the target object to a new file.
>> Export	Export the selected data using Datamine's Data Source Drivers facility.
>> To Excel	Export the target object and open it using Excel.
>> Unload	Unload the target data object.
Copy Data From	Append the target object with data from anohter object, using the Select Objects to Copy From screen.
Extract	Extract a subset of data from the target object using the Extract Data Object screen.
Add Column	Add an attribute to the target object using the Add Column screen. See Add an Attribute to an Object
Make Current Object	Make the target object the current object. See Current Objects.
Select All	Select all items in the current tree node.
Deselect All	Deselect all selected items in the current tree node.
Data Object Manager	Perform object-related functions using the Data Object Manager.
Apply Clipping	By default, 3D window clipping will be applied to all object overlays once clipping is activated. You can choose to disable or apply clipping to any overlay independently using this toggle option. View clipping will only be applied to overlays that are 'clipping-enabled'.
Link to EPS	Display the Change EPS Column screen to choose the primary key of the EPS schedule. Any numeric column can be used to control the sequence. See Change EPS Column.
Rename	Rename the object as it appears in the Project Data bar. This does not change the name of any associated file (if there is one).
[Object Name] Properties	Display the properties of the target object. See Properties Dialog
Use Template	If you have defined one or more 3D display templates for the selected overlay, you can see them listed here - simply select a template to automatically update your currently-active 3D window view. This is particularly useful for checking one domain against another, for example, rock type against a grade. Note: this menu option will only appear if at least one 3D template has been defined for the selected overlay.
Copy	Create an identical, automatically named copy of the selected object (note that there is no requirement to paste the item - the list of objects will be updated automatically). Copied objects have no link to their origins; changes to the original object will not affect the duplicated item, and vice versa.
Look At	Automatically position the 'camera' to show the selected object.
Look at Individual String(strings only)	Display the Select String/Drillhole screen to view a specific string edge.
Redraw	Refresh the view of the selected object in the active 3D window.
Sequence Controls	If a sequencing attribute has been selected, you can animate playback of the data overlay using sequence values within the selected field.
New String (strings only)	Digitize a new string segment within the object associated with the selected overlay.
Project to Wireframe/Section (strings only)	Raise or drop all string points onto the nearest wireframe surface. Displays the Project Strings/Points screen.
Convert to Planes(strings only)	Convert the target string to a planes object where the plane is established as the best fit plane of all string points.
Verify (wireframes only)	Check the loaded Wireframe object for potential data-related problems such as crossovers, empty faces, duplicate faces, duplicate vertices and duplicate edges. Verifying a wireframe object will provide a more consistent data object which will be easier to navigate, texture and manipulate, and is recommended for all new Wireframe data sets.
Quick Legend	Create a simple numeric legend using theQuick Legend screen.
Display Legend	Preview the legend that is currently associated with the 3D object.
Legend Column	Select any data field within the parent object from which the 3D overlay was created. Once selected, the currently associated legend will be applied to the new column. Note that the fixed color will be used for any unmatched data.
Rename	Rename the selected 3D overlay.
