Stope Reconciliation - Run

To access this dialog:

Using the Stope Reconciliation ribbon, select Run.

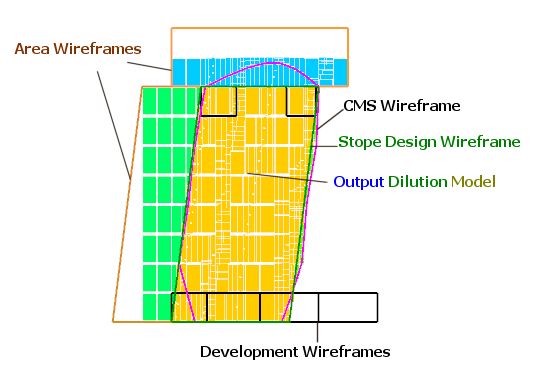

This panel is used to define a reconciliation scenario, namely the specification of an output dilution model and some general settings relating to how the model and output evaluation is created. Once a run is complete and an output dilution model exists, you can review the results of reconciliation on the Results panel.

The output dilution model will be attributed according to inputs and correlates with the output reconciliation report. The output dilution model is stored in the Studio UG Stope Reconciliation Database (in your project folder).

Field Details:

The following options are available:

Output Dilution Model: enter the Output Block Model to store the model and report data that are created during the stope reconciliation process. In order to define the block model structure, the number of Subcells per parent cell will need to be defined using the Parent Cell Divisors field (click the browse button to display a utility to set this up).

You can also choose how your overbreak and underbreak values are reported. They can be reported in relation to either the specified Design file volume or the CMS data file.

There is an option to perform a Volume check on wireframes and model cells. Although slower, this will isolate inconsistencies and potential problems, and is recommended.

Please note that this process of generating a stope design and output dilution model can, for large input files, take several minutes. A progress bar is displayed throughout the process.
