Viewing Multivariate Simulation Scatter Plots

In Supervisor, two types of scatter plot are associated with Multivariate Simulation Generation.

1. Factor Results Scatter Plots – Generated after running the Multivariate Simulation. See Configure Factor Results Scatter Plot Properties.
2. Back Transform Results Scatter Plots – Generated after back-transforming the results. See Draw and Configure a Scatter Plot.

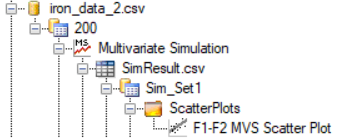

The image below shows the Project Tree layout with a Factor Results Scatter Plot inserted.

The image below shows the Project Tree layout with a Back Transform Results Scatter Plot inserted.
