Interface

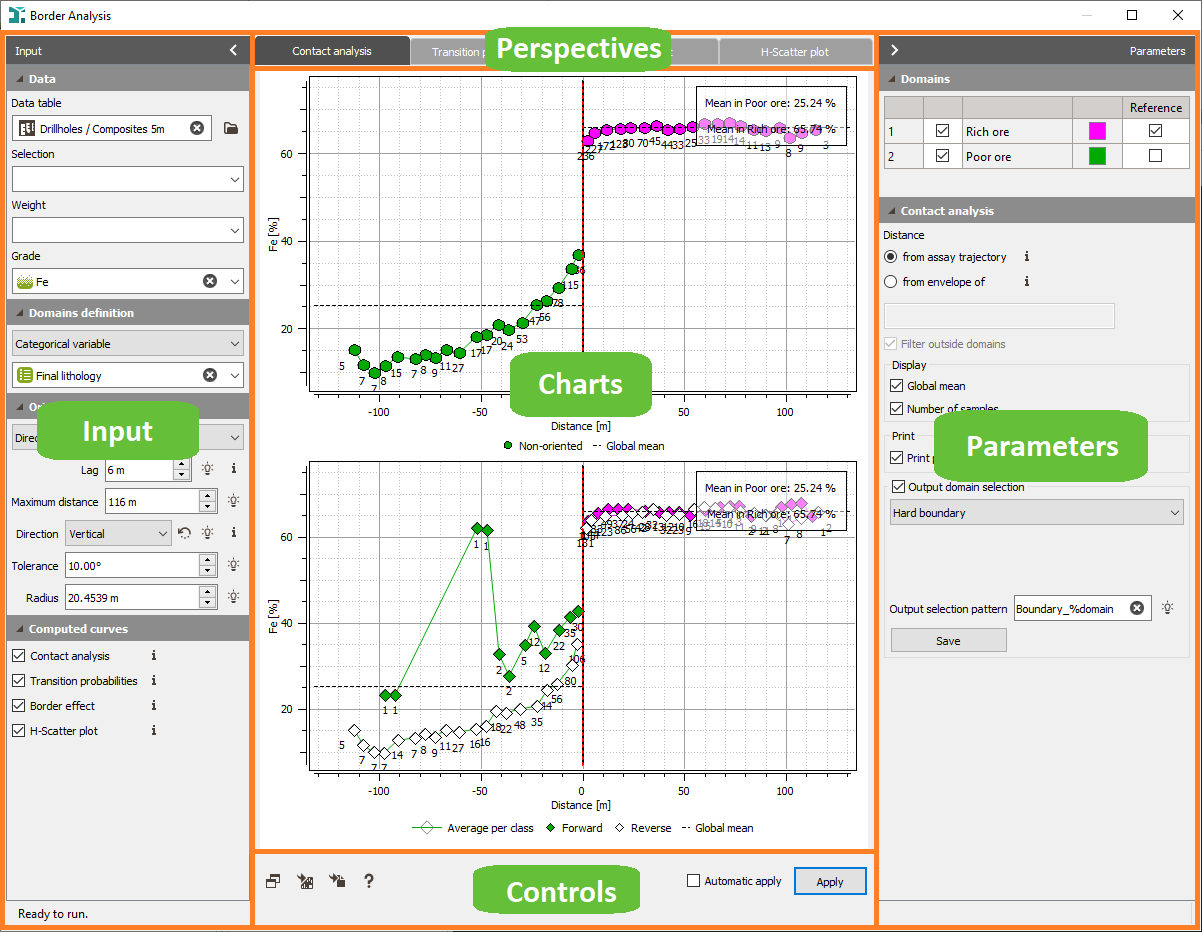

The interface of the Border analysis tool is based on four sections:

• Input
• Charts
• Parameters
• Controls

The Input and Parameters sections can be "minimized" using the dedicated button.

The Border analysis allows to calculate several statistical representations grouped by perspective:

• Contact analysis: to show how a grade variable varies at the proximity of a contact and define the type of contact (hard or soft) between one domain and the others.
• Transition probabilities: to define the connectivity between two domains by measuring the probability to enter a domain B when leaving a domain A.
• Border effect: to evaluate the impact of the domaining on the spatial variability of a grade variable.
• H-scatter: to analyze the spatial continuity of the grade variable.

Each perspective will produce one or several graphical representations.
