Section Viewer Organization

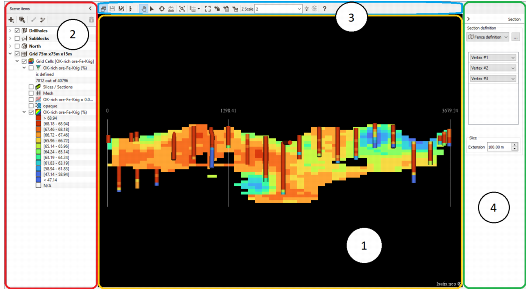

The Isatis.neo Section Viewer is designed to clip data along «fences» established by various consecutive planes with a 2D rendering. The Section Viewer is divided into four parts:

1. the Display window where graphic objects are displayed;
2. Items List showing all the items of the project that can be displayed in the Section Viewer.
3. a Tool Bar on the top containing general tools related to the display (i.e. item properties, axis, report, background color, views, vertical scaling).
4. the Clip plane options on the right containing the different parameters used to defined the section plane(s).
