Edit and Create Action Definitions

Important: Store your custom action definition documents in a location that is backed up.

Action Definitions are Word documents used to configure actions in LandTracker. You can modify the standard action definitions that have been created by LandTrack Systems (see Download Templates and Action Definitions) or you can create your own.

The most common modification is updating an action's tasks to match your company’s business process. Other areas you can define include:

• Which assets an action applies to.
• When an action should occur.
• Mandatory conditions required for an action to be created.

Important: Do not rename the standard action definitions as this may disable some of LandTracker's functionality.

Note: LandTracker templates use specific naming conventions, see Action Definitions for more on the structure of file name and the templates.

Considerations before editing an action definition document:

Each section of the Action Definitions document is represented by a series of tables with labels and fields. All of these elements are customisable; however, LandTracker requires that the logic, basic format and structure of the document remain intact so that it can be imported.

• In the document, sections filled with green can be edited and are read by LandTracker.
• Some tables have hidden borders. In Word's View tab, select the Gridlines check box to show the borders as dotted lines.
• Tables must be separated by a new line for LandTracker to recognise them as separate tables.
• Do not leave blank rows within the table or more than one blank row and the end of a table.

To create a new action definition:

1. Open the document of an existing similar action.
2. Save a copy of the document using the standard file name convention, see Action Definitions.
3. In the Action Trigger table, in the Asset Type field, enter Tenement, Agreement, Environment, or Contact as applicable.

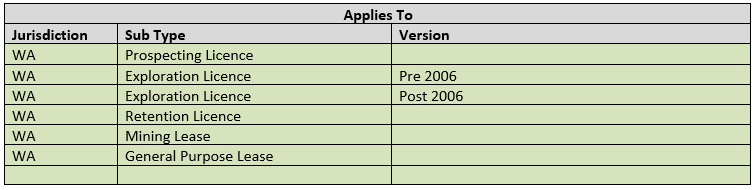

4. In the Applies To table, enter the Sub Type of the asset that the action should be created for. Enter the Jurisdiction and/or Version details as required.

   Important: These details must be exactly as defined in the Asset Templates.



5. To specify preconditions, in the Action Trigger table, enter the Precondition criteria. For example, most tenement actions are only applicable for live tenements, this is reflected as:

   Copy

   {status} = Live

   Important: The precondition must be entered in the following format:

   • {Fieldname} = Value to specify that something must be true.

   • {Fieldname} != Value or {Fieldname} <> Value to specify that something must not be true.

   • You can also use > for greater than, or for less than, >= for greater than or equal to, or <= for less than or equal to.

     • To include multiple preconditions, enter a carriage return between them. Ensure they are all in the same cell of the table. Actions will be created if the asset meets all of the preconditions listed.

   Note: If the action applies to all assets of the type and sub type specified, delete the Precondition row from the Action Trigger table.

   Note: You can apply different preconditions for each sub type by removing the row from the Action Trigger table and adding a column titled Preconditions to the Applies To table.



6. To specify group membership, in the Action Trigger table in the Is Member Of field, enter theGroup Name.

   Note: When listing multiple groups, enter a carriage return between them, ensuring they remain in the same cell of the table. Actions are created if the asset is a member of any one of the groups.

   Note: If you want the action to be created for all assets, delete the Is Member Of row from the Action Trigger table.

7. Enter the action's Interval frequency. Select from:

   • On Demand—used for one-off (ad hoc) Actions

   • Monthly or Month

   • Annually or Annual

   • X days/years/months

   • Every X days/years/months—For an action that occurs once, such as based on Received Date, use 0 days.

     Note: The interval works in conjunction with the Critical Date field in the Action Trigger table.

     Note: The Interval field may also be referred to as the Due After, Due On, or Term field. The default templates are being updated to standardise the terminology to use Interval.

8. To apply the same interval across all asset types and sub types, leave the Interval field in the Action Trigger table.

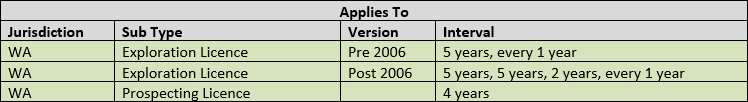

9. To assign a different interval to each sub type, move the Interval field to a column in the Applies To table.

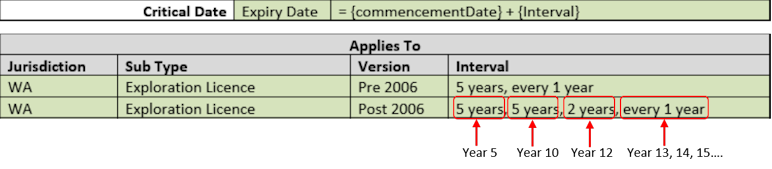

   Note: One action may have multiple intervals, separated by commas. These are additive, for example, for an action to occur at years 2 and 4, enter 2 years, 2 years, not 2 years, 4 years.



10. In the Action Trigger table, update the Critical Date field as required.

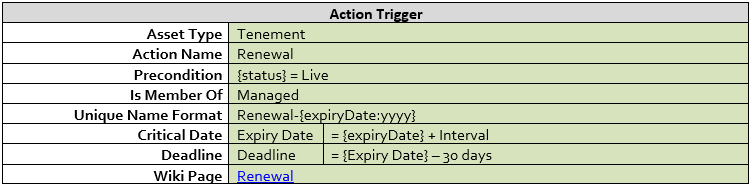

    Note: To use a tenement's Expiry Date instead of Commencement Date as the Critical Date, you must add a Unique Name Format field to the Action Trigger table. The format of this field is Action Name-{expiryDate:yyyy}. The purpose of the field is to make the action's name unique by appending the year of expiry at the end, the system sees each subsequent expiry as a separate action.



11. In the Action Trigger table, update the AutoComplete field with one of the following values:

    • Off—The action does not auto-complete.

    • OnLodgeForm5—The action auto-completes once the expenditure record has a Lodge Date, even if the expenditure total is less than the commitment.

    • OnLodgeExemption—The action auto-completes if the commitment has been met or the expenditure record has an Exemption Lodged date.

    • OnExemptionGranted—The action only auto-completed if the commitment has been met or the expenditure record's Exemption Status is Granted. This is the default setting and is applied when the AutoComplete field in the action definition is blank or is missing.

      Important: The AutoComplete field in the action definition is overridden if auto-complete is disabled in the Application Settings.

12. In the Task List table, update Description and Days Needed Before Deadline as required.
13. In the Change History table, update the Date, Version, and Changes fields.
14. Save your document.

To create an ad hoc action definition:

1. Open the Ad Hoc - Tenements action definition template.
2. In the Action Trigger table, update the Asset Type as required.
3. In the Action Trigger table, update the Action Name as required.
4. In the Task List table, update the Description as required.
5. In the Task List table, update the Days Needed Before Deadline as required.
6. In the Change History table, update the Date, Version, and Changes fields as required.
7. Save the document with necessary Action Definitions naming convention.
8. To upload your action definition to LandTracker, see Import Action Definitions.

To add a specific type to the tenement ad hoc action definition:

A Specific Type can be created for the Tenement Ad Hoc action, selected in the Edit Actions screen, see Manage Ad Hoc Actions.

Note: The Interval field must stay as On Demand.

1. Open your copy of the Tenement Ad Hoc template.
2. In the Action List table, enter the Action and its Duration.
3. In the Change History table, update the Date, Version, and Changes fields as required.

4. Save the document with necessary Action Definitions naming convention.

5. To upload your action definition to LandTracker, see Import Action Definitions.
